Web Panel WR2110.1-111-AA-000-NN-A1-NN ctrlX HMI control panel controller (10", capacitive multi-touch) - R911411946

Web Panel WR2110.1-111-AA-000-NN-A1-NN ctrlX HMI control panel controller (10", capacitive multi-touch) - R911411946

€865,00 EUR
€865,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Auf Lager. In 2–5  Tagen bei dir.

The Panel PC product line combines the functions of the Box PC and the remote displays and terminals in a compact PC solution. The extremely versatile scalability of the display format as well as a wide portfolio of expansion options and standard interfaces make the Panel PC the predestined platform solution for all HMI-based applications.

Technical data

Performance data:

  • CPU: ARM i.MX8M Mini Quad Core; 1.6GHz
  • RAM: 2 GB
  • Storage: 16 GB; eMMC
  • Web browser: Chromium

Display:

  • Screen diagonal: 10.1" (1280 x 800; WXGA)
  • Orientation: Horizontal
  • Operation: Capacitive 10-point multi-touch screen/ EDT

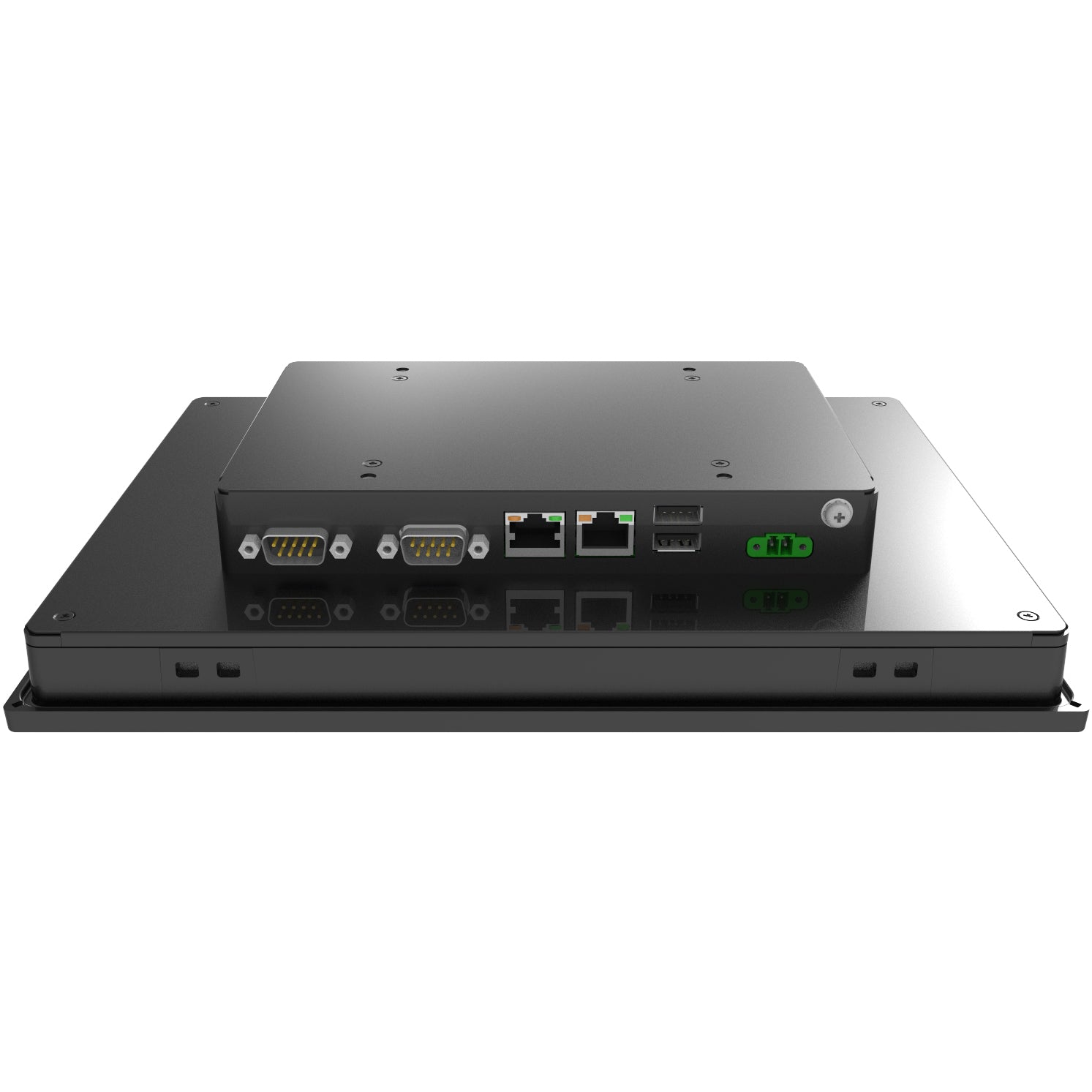

Interfaces:

  • Ethernet: 2x 10/100/1000 MBit/s Ethernet (RJ45)
  • Serial: 1x RS232/422/485, 1x RS485
  • USB: 2x USB-A (2.0), 1x Micro USB (2.0/internal)
  • SD card: 1x Micro-SD (internal)

Electrical data:

  • Supply voltage: 24 V DC, ±20%

General data:

  • Mounting: Panel mounting, VESA mounting
  • Protection class: IP66 (front), IP20 (rear)

Norms and standards:

  • Standards: CE, UL, cUL, FCC, CCC
  • Certification: Industrial Class A

Dimensions:

  • A: 283.1mm
  • Width: 202.3mm
  • C: 52.0mm
  • Weight: 2.2kg

Downloads

Operating instructions
