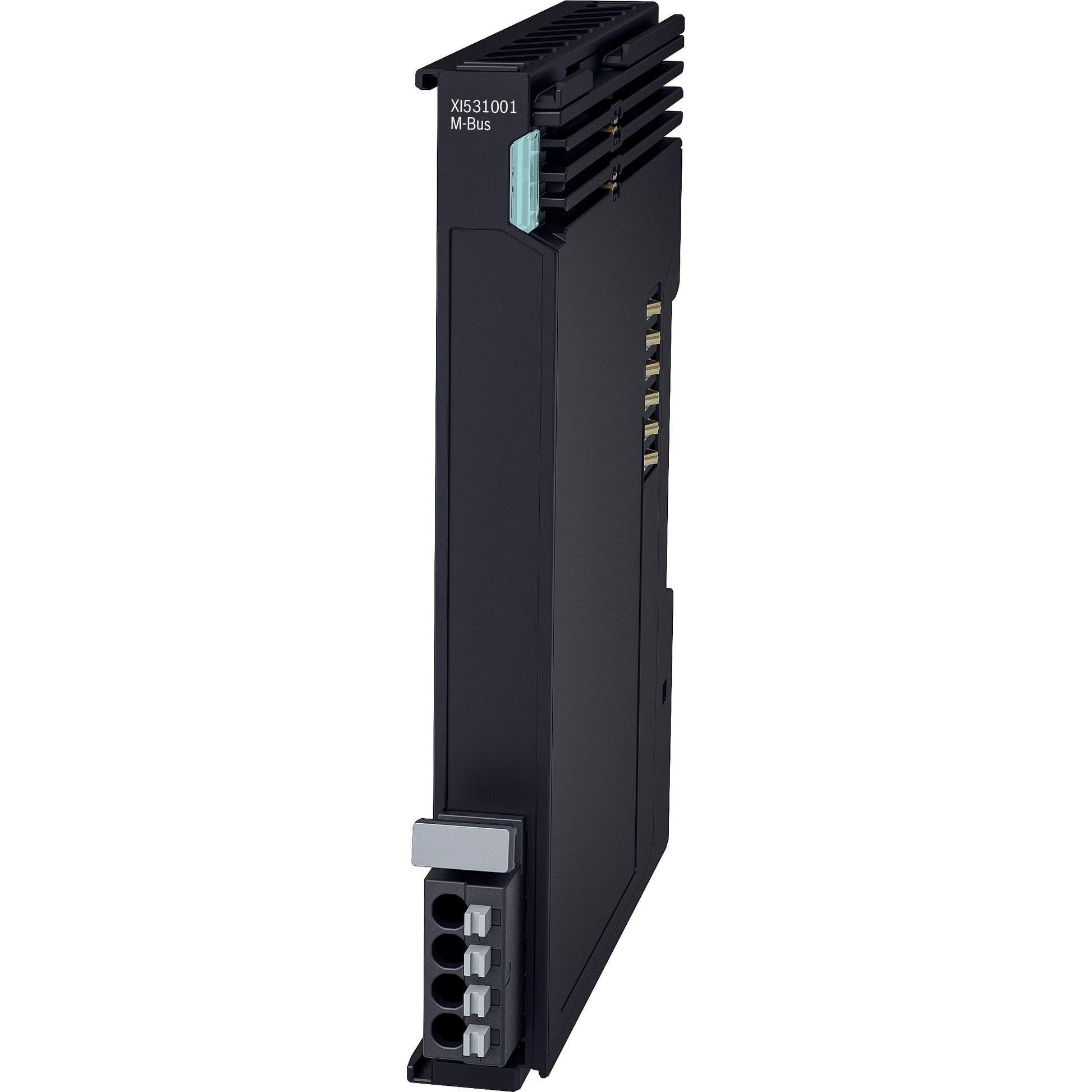

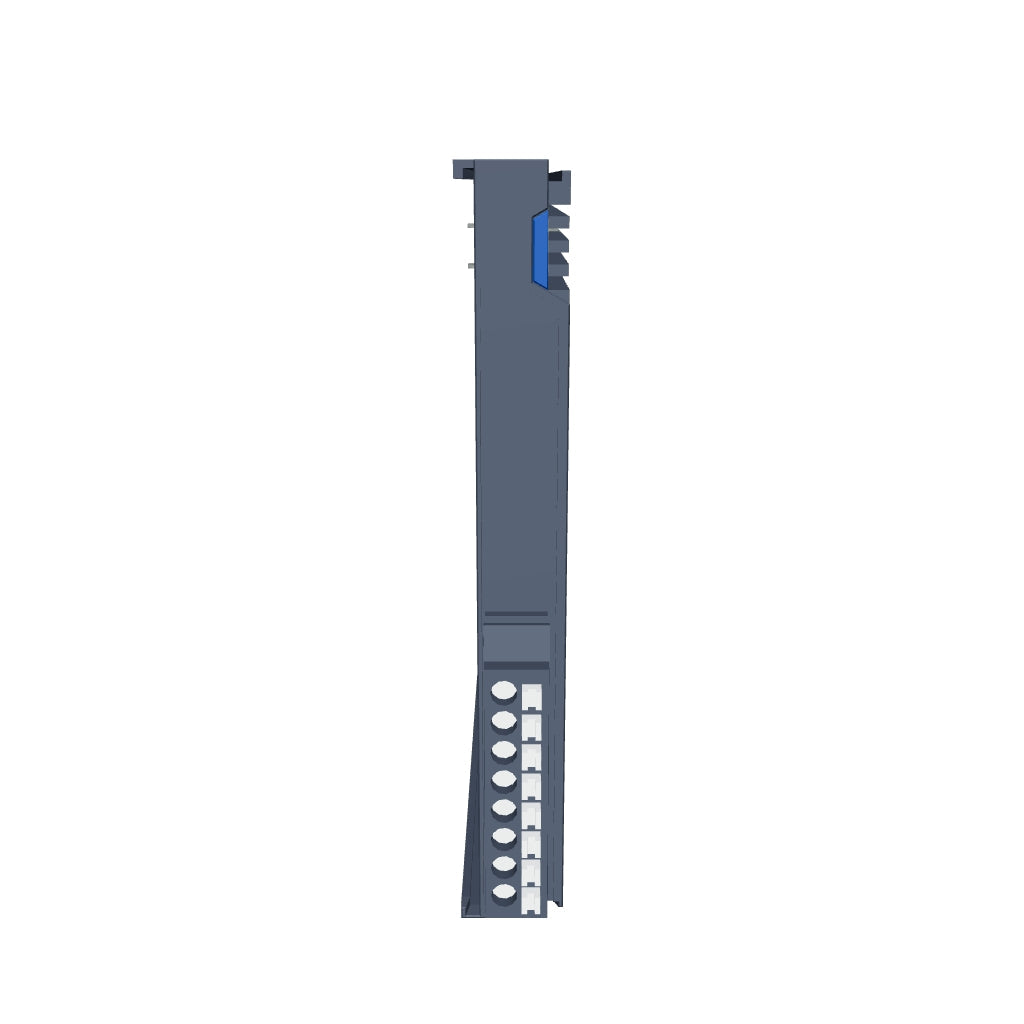

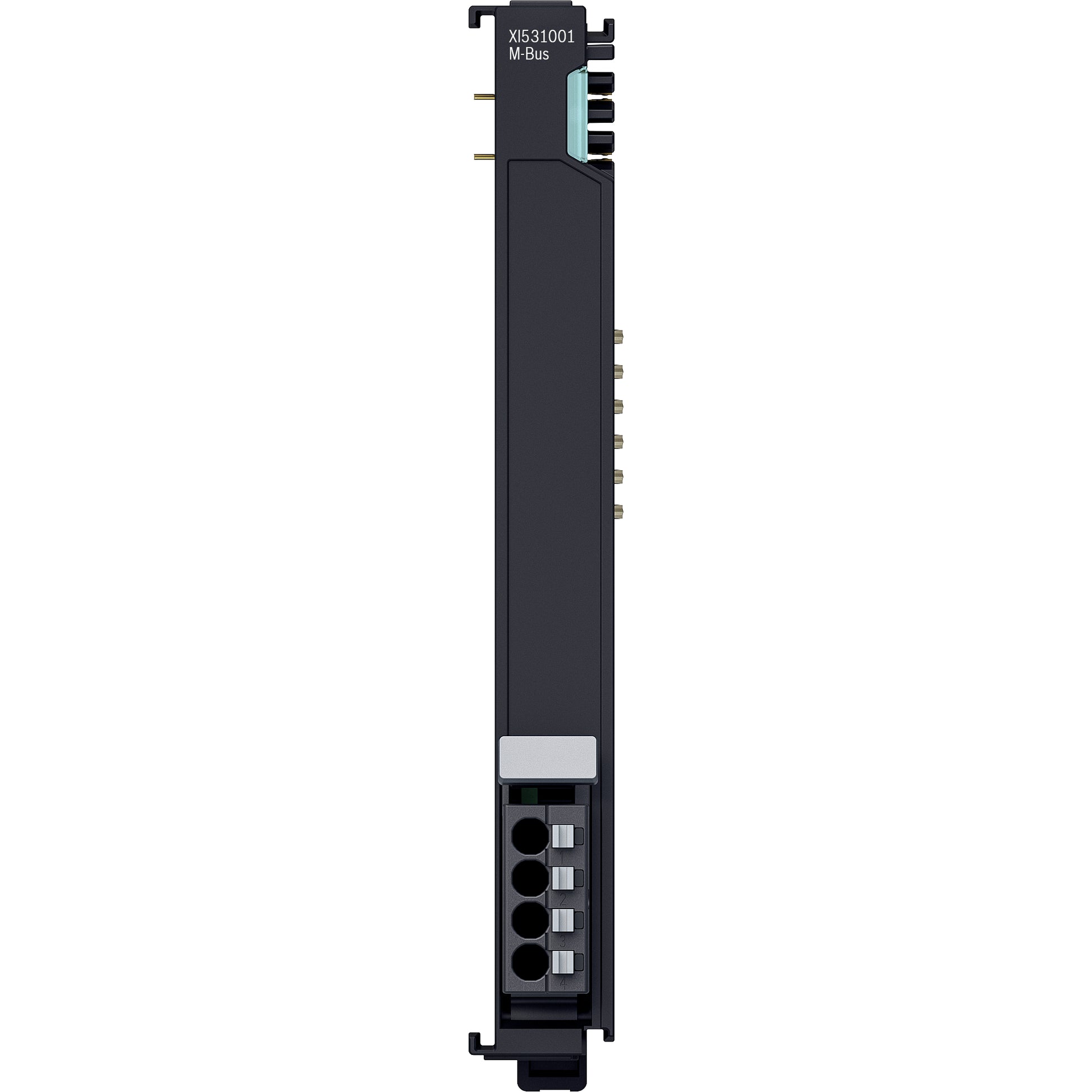

Communication module XI531001 ctrlX I/O 1-channel (M-Bus master) - R911423593

General technical data

• Number of channels: 1
• Connection type: Push-in terminal
• Connection technology: 2-wire
• Signal type: Meter bus (M-Bus)
• Data transfer rate (bps): 300, 600, 1200, 2400 (default), 4800, 9600, 19200, 38400; (configurable)
• Maximum number of supported participants: 50
• Collision detection: Yes
• Data buffer: 511 bytes transmit buffer (TxD), 511 bytes receive buffer (RxD)
• Maximum distance between module and participants: 350 m (1.5 mm²), maximum topology length: 1000 m (1.5 mm²)
• Overload protection: Yes, short-circuit proof
• Nominal voltage (UL/UP): DC 24 V (19.2 V to 30 V including tolerance and ripple) PELV/SELV (Safety Extra Low Voltage)
• Current consumption UL: 36 mA
• Current consumption UP, without external load: 50 mA
• Maximum current draw UP: 210 mA
• Maximum thermal power consumption of the module, without external load: 2.5 W
• Data width in the process data image (including padding bits): 32-byte output, 36-byte input (user data width Rx and Tx 30 bytes each)
• Parameterization: Via ctrlX Works (startup parameters)
• Configuration: No address or configuration setting
  necessary
• Dimensions: 12 mm × 105 mm × 99 mm (width × height × depth)
• Weight: 90 g (module including peripheral connector)
• Potential isolation: DC 1200 V UP to UL, DC 707 V UL/UP to FE, tested for 60 s each (not evaluated by UL)
• EMC resistance: According to EN 61000-6-2 and EN 61000-6-4
• Installation position: Vertical, on a horizontal support rail
• Markings, approvals: CE, UKCA, UL
