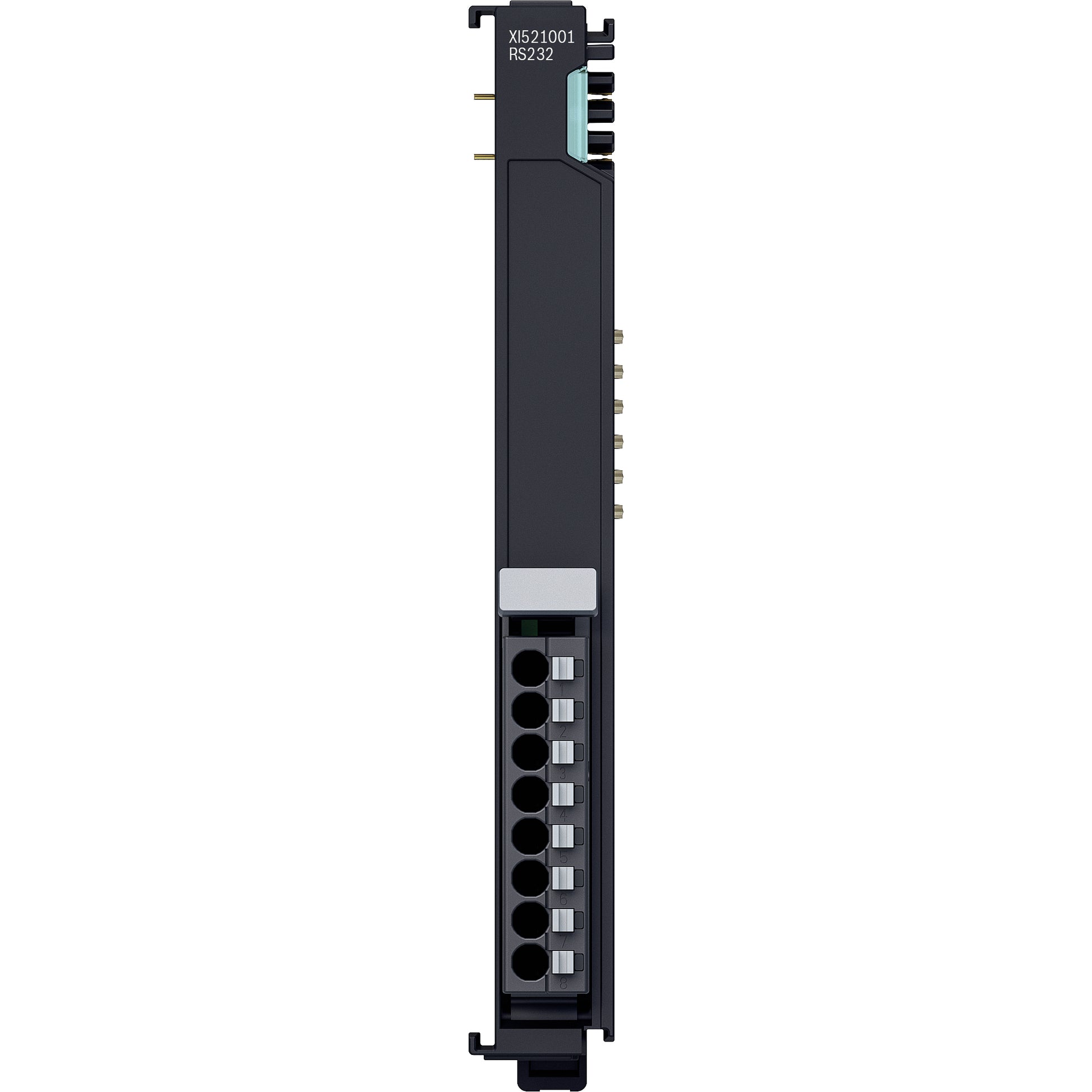

Communication module XI521001 ctrlX I/O 1-channel (RS-232 serial interface) - R911421015

Communication module XI521001 ctrlX I/O 1-channel (RS-232 serial interface) - R911421015

€549,00 EUR
€549,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Auf Lager - Lieferzeit 2-5 Werktage*

The XI521001 communication module enables the connection of devices with an RS232 interface to a ctrlX I/O station. Serial communication operates independently of the overlying bus system in full-duplex mode at up to 250 kBaud. Receive and transmit buffers, each with 511 bytes, allow for the rapid transmission and reception of large, contiguous data streams.

The logic and peripheral power supply as well as the EtherCAT-based module communication are forwarded through the module.

The corresponding ESI files are available for integration into the higher-level system.

Technical data

General technical data

  • Number of channels: 1
  • Connection type: Push-in terminal
  • Connection technology: 1-conductor, shielded
  • Signal type: ANSI EIA/TIA-232-F
  • Interfaces: RS232 full duplex
  • Data transfer rate (bps): 2400, 4800, 7200, 9600, 14400, 19200, 28800, 38400, 57600, 76800, 115200, 230400, 250000 (configurable)
  • Data bits: 7-8 bits (configurable)
  • Parity: even, odd, no parity (configurable)
  • Stop bits: 1-2 (configurable)
  • Hardware flow control: RTS / CTS (configurable)
  • Data buffer: 511 bytes transmit buffer (TxD), 511 bytes receive buffer (RxD)
  • Cable length: Max. 15 m
  • Voltage output for external devices: 5 V (4.82 V to 5.10 V), 500 mA (short-circuit proof)
  • Nominal voltage (UL/UP): DC 24 V (19.2 V to 30 V including tolerance and ripple) PELV/SELV (Safety Extra Low Voltage)
  • Current consumption UL: 40 mA
  • Current consumption UP: 20 mA + load
  • Maximum power consumption of the module: 1.32 W
  • Data width in the process data image (including padding bits): 32-byte output, 36-byte input (user data width Rx and Tx 30 bytes each)
  • Parameterization: Via ctrlX Works (startup parameters)
  • Configuration: No address or configuration setting required
  • Dimensions: 12 mm × 105 mm × 99 mm (width × height × depth)
  • Weight: 89 g (module including peripheral connector)
  • Potential isolation: DC 1200 V UP to UL, DC 707 V UL/UP to FE, tested for 60 s each (not evaluated by UL)
  • EMC resistance: According to EN 61000-6-2 and EN 61000-6-4
  • Installation position: Vertical, on a horizontal support rail
  • Markings, approvals: CE, UKCA, UL
