Digital input module XI110208 ctrlX I/O 8-channel (24 VDC, 3 ms filter time, 2-wire, PNP) - R911406096

Digital input module XI110208 ctrlX I/O 8-channel (24 VDC, 3 ms filter time, 2-wire, PNP) - R911406096

€99,00 EUR
€99,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Auf Lager. In 2–5  Tagen bei dir.
Legal guarantee rights
Legal guarantee rights Download document

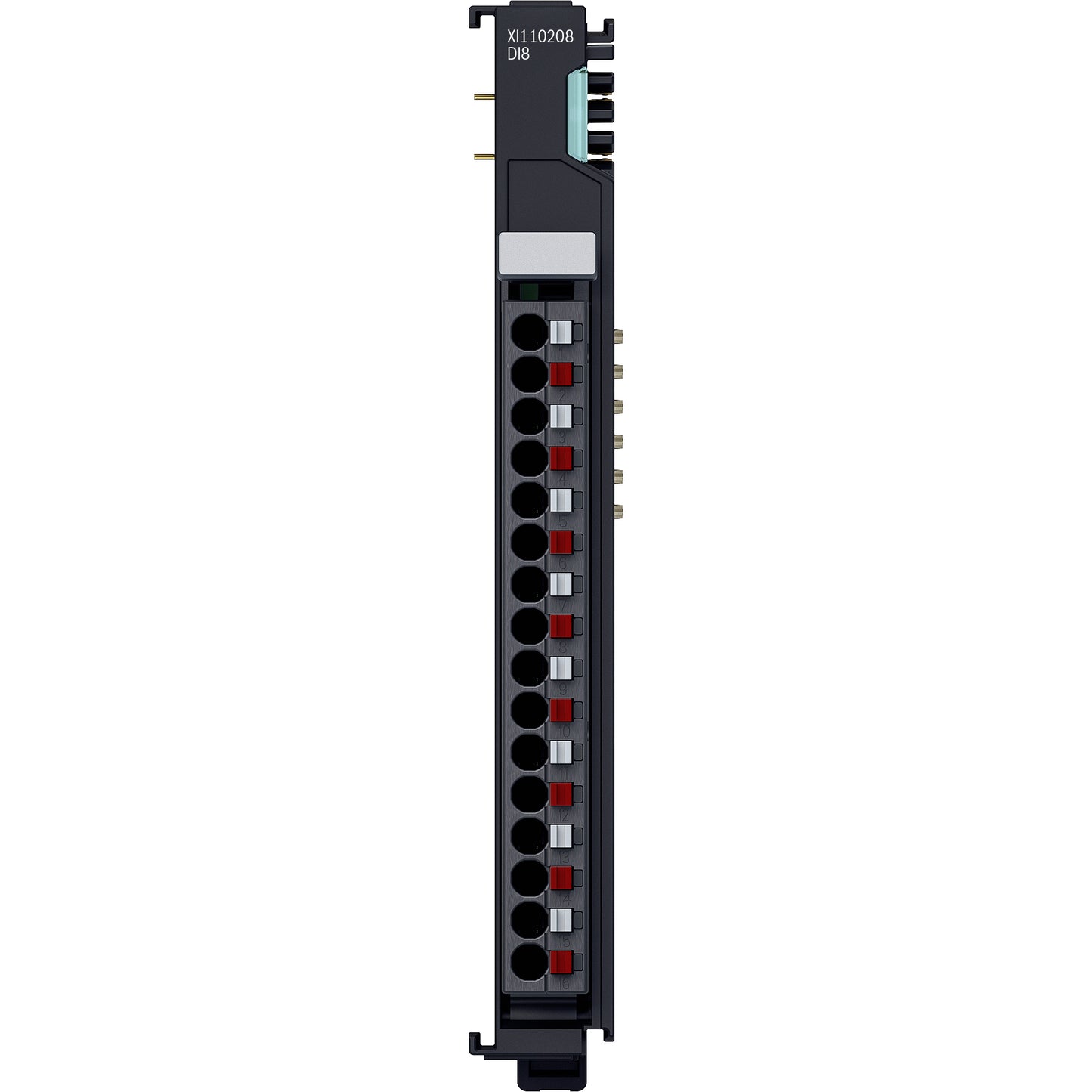

The XI110208 digital input terminal is used to acquire binary 24 V control signals in a ctrlX I/O station. The terminal has eight channels and uses a 2-wire connection. The signal status is indicated by the channel LED on the detachable peripheral connector.

The logic and peripheral power supply as well as the EtherCAT-based module communication are managed by the module.

The corresponding ESI files are available for integration into the higher-level system.

Technical data

General technical data:

  • Number of inputs: 8
  • Connection type: push-in terminal
  • Connection technology: 2-wire technology
  • Specification: EN 61131-2, Type 1/3
  • Input filter: 3 ms
  • Signal voltage "0": -3 V ... 5 V
  • Signal voltage "1": 11 V ... 30 V
  • Input current: Typically 2.4 mA
  • Max. output current per terminal point UOUT 24 V: 1 A
  • Max. total current UOUT 24 V: 2 A
  • Nominal voltage (UL / UP): DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
  • Current consumption UL: 30 mA
  • Current consumption UP: 15 mA + output current UOUT
  • Maximum power consumption of the module: 1.43 W
  • Bit width in the process image: 1 byte (8 bits)
  • Configuration: No address or configuration setting required
  • Dimensions: 12 mm × 105 mm × 99 mm (width × height × depth)
  • Weight: 100 g (module including plug)
  • Potential isolation: 1211 V DC UP to UL, 707 V DC UP/UL to FE (not evaluated by UL)
  • EMC immunity: According to EN 61000-6-2 and EN 61000-6-4
  • Installation position: Vertical, on a horizontal mounting rail
  • Marking, approvals: CE, UKCA, UL (⮫ File No. E210730)
