Digital input module XI110204 ctrlX I/O 4-channel (24 VDC, 3 ms filter time, 2-wire, PNP) - R911417202

Digital input module XI110204 ctrlX I/O 4-channel (24 VDC, 3 ms filter time, 2-wire, PNP) - R911417202

€75,00 EUR
€75,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Auf Lager. In 2–5  Tagen bei dir.

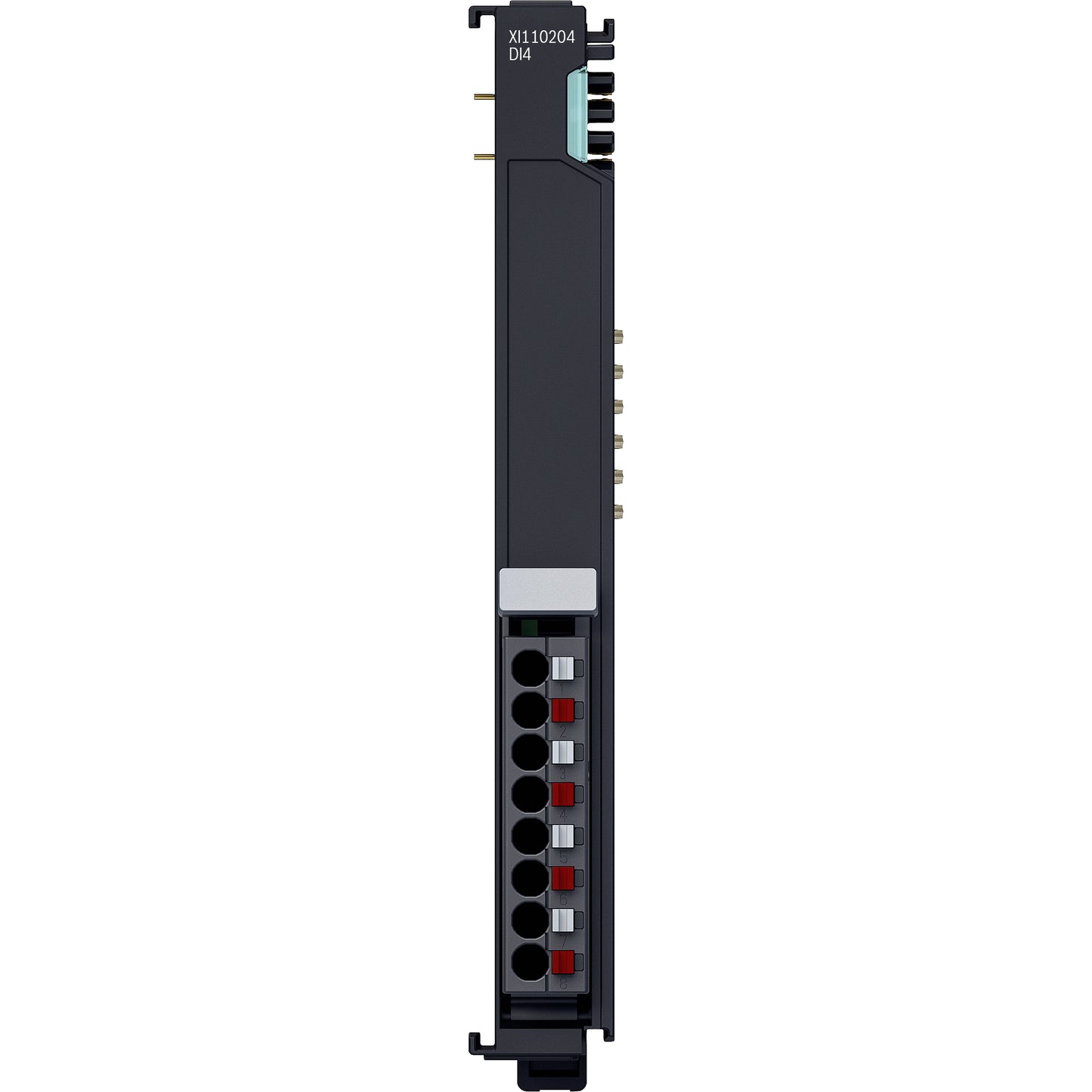

The XI110204 digital input module is used to acquire binary 24V control signals in a ctrlX I/O station. The module features four channels in a two-wire configuration. The signal status is indicated by the channel LED on the detachable peripheral connector.

The logic and peripheral power supply as well as the EtherCAT-based module communication are forwarded through the module.

The corresponding ESI files are available for integration into the higher-level system.

Technical data

General technical data:

  • Number of inputs: 4
  • Connection type: Push-in
  • Connection technology: 2-wire technology
  • Specification: EN 61131-2, Type 1/3
  • Input filter: 3 ms
  • Signal voltage "0": -3 V ... 5 V
  • Signal voltage "1": 11 V ... 30 V
  • Input current: Typically 2.4 mA
  • Reverse polarity protection of inputs: Reverse polarity protected up to 30 V
  • Max. output current per terminal point UOUT 24 V: 1 A
  • Max. total current UOUT 24 V: 2 A
  • Nominal voltage (UL / UP): DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
  • Current consumption UL: 26 mA
  • Current consumption UP: 13 mA + load UO
  • Maximum power consumption of the module: 1.26 W
  • Bit width in the process image: 4 bits
  • Configuration: No address or configuration setting required
  • Dimensions: 12 mm × 105 mm × 99 mm (width × height × depth)
  • Weight: 90 g (module including plug)
  • Potential isolation: DC 1200 V UP to UL, DC 707 V UP/UL to FE, tested for 60 s each (not evaluated by UL)
  • EMC immunity: According to EN 61000-6-2 and EN 61000-6-4
  • Installation position: Vertical, on a horizontal mounting rail
  • Marking, approvals: CE, UKCA, UL

Downloads

Operating instructions

ESI files
