Digital input module XI110116 ctrlX I/O 16-channel (24 VDC, 3 ms filter time), 1-wire, PNP - R911406097

Digital input module XI110116 ctrlX I/O 16-channel (24 VDC, 3 ms filter time), 1-wire, PNP - R911406097

€113,00 EUR
€113,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Auf Lager - Lieferzeit 2-5 Werktage*

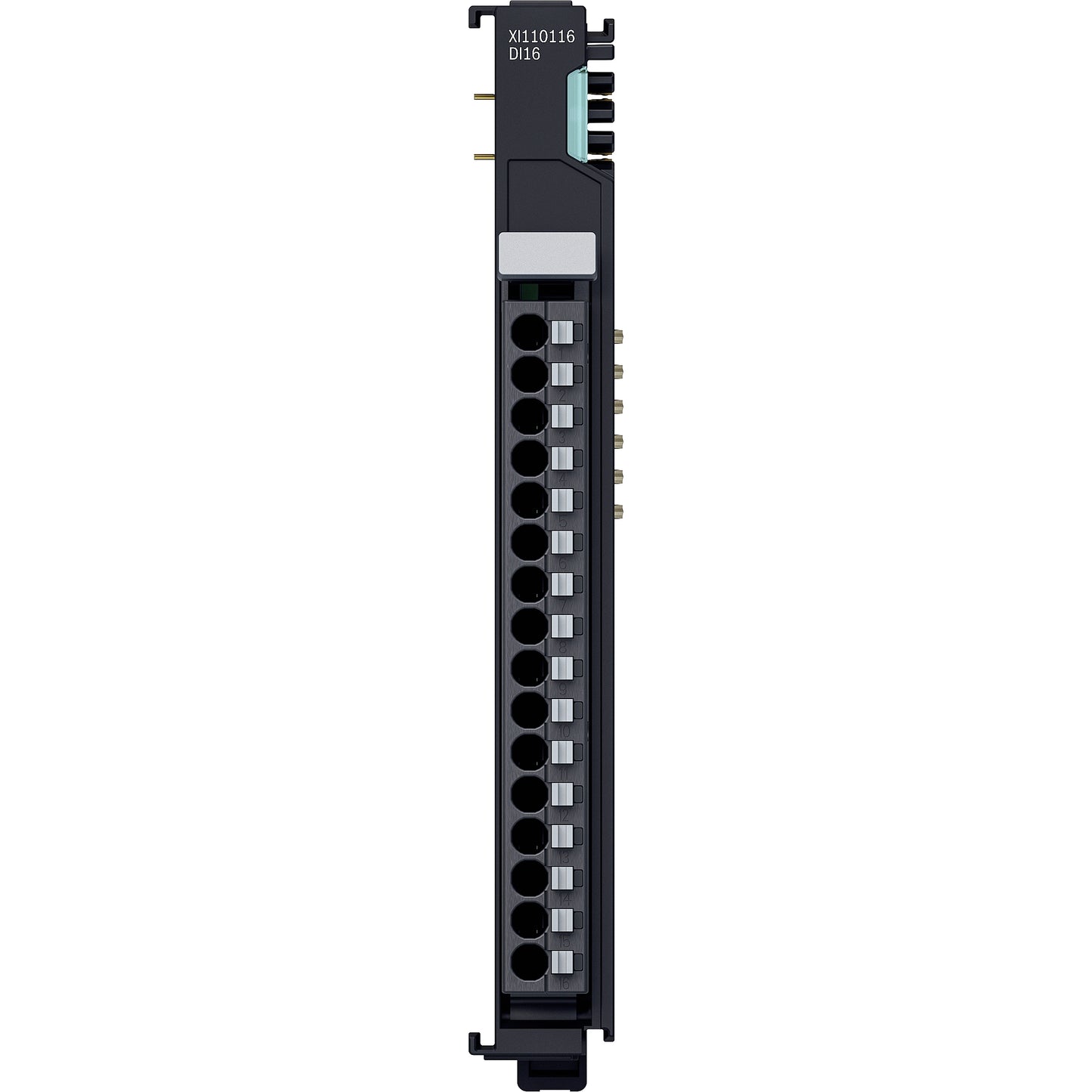

The XI110116 digital input terminal is used to acquire binary 24 V control signals in a ctrlX I/O station. The terminal features 16 channels in single-wire technology. The signal status is indicated by the channel LED on the removable peripheral connector. The logic and peripheral power supply, as well as the EtherCAT-based module communication, are routed through the module.

The corresponding ESI files are available for integration into the higher-level system.

Technical data

General technical data:

  • Number of inputs: 16
  • Connection type: push-in terminal
  • Connection technology: 1-wire technology
  • Specification: EN 61131-2, Type 1/3
  • Input filter: 3 ms
  • Signal voltage "0": -3 V ... 5 V
  • Signal voltage "1": 11 V ... 30 V
  • Input current: Typical 2.4 mA
  • Nominal voltage (UL / UP): DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
  • Current consumption UL: 30 mA
  • Current consumption UP: 19 mA
  • Maximum power consumption of the module: 1.89 W
  • Bit width in the process image: 2 bytes (16 bits)
  • Configuration: No address or configuration setting required
  • Dimensions: 12 mm × 105 mm × 99 mm (width × height × depth)
  • Weight: 100 g (module including connector)
  • Potential isolation: 1211 V DC UP to UL, 707 V DC UP/UL to FE (not evaluated by UL)
  • EMC immunity: According to EN 61000-6-2 and EN 61000-6-4
  • Installation position: Vertical, on a horizontal mounting rail
  • Marking, approvals: CE, UKCA, UL (⮫ File No. E210730)

Downloads

Operating instructions

ESI files
