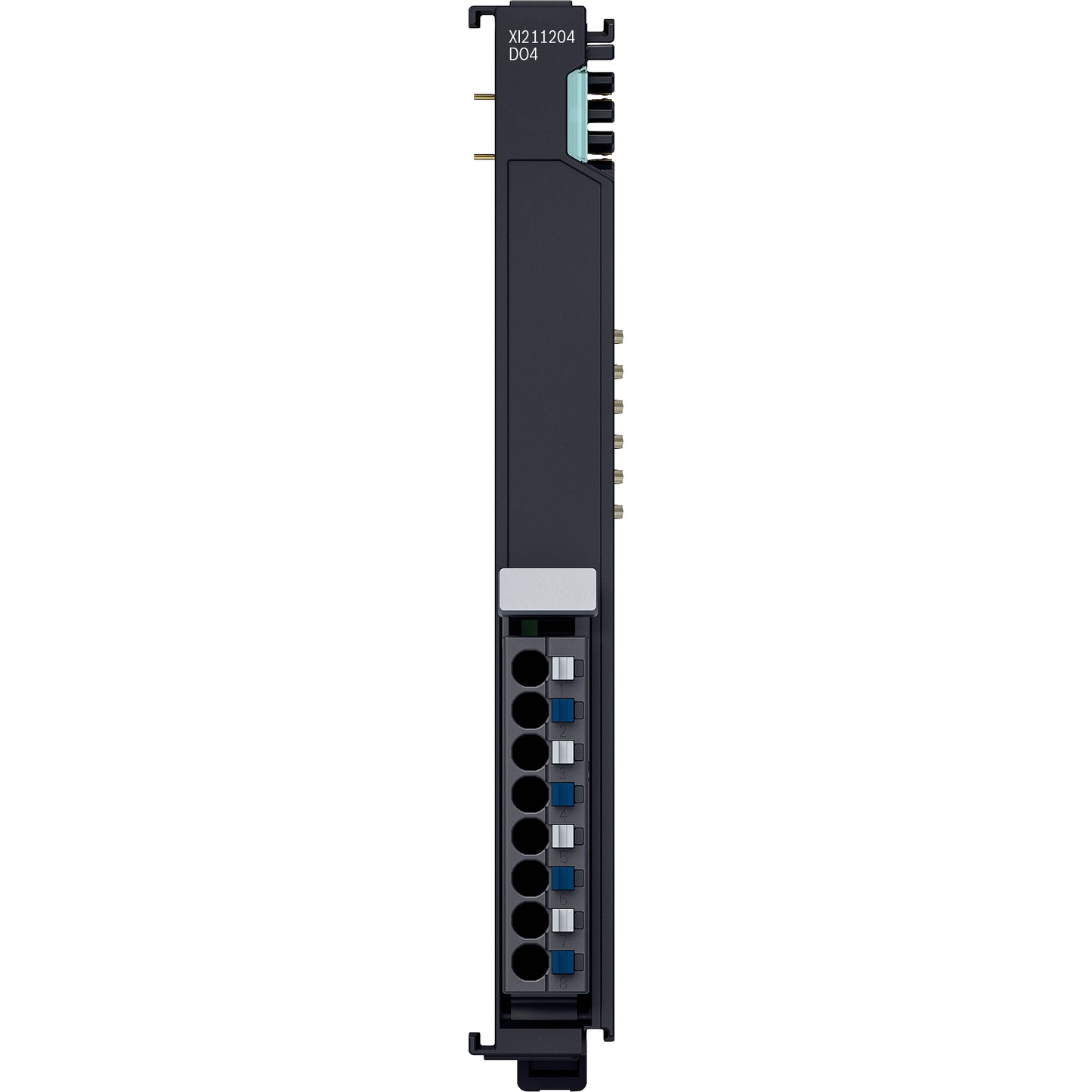

Digital output module XI211204 ctrlX I/O 4-channel (24 VDC, 0.5 A, 2-wire, PNP) - R911417208

Digital output module XI211204 ctrlX I/O 4-channel (24 VDC, 0.5 A, 2-wire, PNP) - R911417208

€72,00 EUR
€72,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Auf Lager. In 2–5  Tagen bei dir.

The XI110204 digital input module is used to acquire binary 24V control signals in a ctrlX I/O station. The module features four channels in a two-wire configuration. The signal status is indicated by the channel LED on the detachable peripheral connector.

The logic and peripheral power supply as well as the EtherCAT-based module communication are forwarded through the module.

The corresponding ESI files are available for integration into the higher-level system.

Technical data

General technical data:

  • Number of outputs: 4
  • Connection type: Push-in
  • Connection technology: 2-wire technology
  • Maximum output current: 0.5 A per channel, total current of the channels: max. 2 A. The GND contact assigned to the channel must not be loaded beyond the maximum output current of 0.5 A.
  • Nominal load: Ohmic, maximum 12 W (48 Ω; at nominal voltage)
  • Minimum load: 10 kΩ
  • Rise time (TRise): Without load: On digital input 16.4 µs, 17.3 µs at 240 Ω, 100 mA, Resistive nominal load: 17.4 µs at 48 Ω, 500 mA
  • Fall time (TFALL): Without load: On digital input 450 µs, 45.3 µs at 240 Ω, 100 mA, Resistive nominal load: 22.4 µs at 48 Ω, 500 mA
  • Inductive shutdown energy: Maximum 150 mJ
  • Behavior in case of overload: Channel-granular shutdown with automatic restart
  • Regeneration protection: Not regeneration proof, external precautions necessary
  • Nominal voltage (UL/UP): DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
  • Current consumption UL: 30 mA
  • Current consumption UP: 15 mA + load
  • Maximum power consumption of the module: 1 W
  • Bit width in the process image: 4 bits
  • Configuration: No address or configuration setting required
  • Dimensions: 12 mm × 105 mm × 99 mm (width × height × depth)
  • Weight: 90 g (module including plug)
  • Potential isolation: DC 1200 V UP to UL, DC 707 V UP/UL to FE, tested for 60 s each (not evaluated by UL)
  • EMC immunity: According to EN 61000-6-2 and EN 61000-6-4
  • Installation position: Vertical, on a horizontal mounting rail
  • Marking, approvals: CE, UKCA, UL

Downloads

Operating instructions

ESI files
