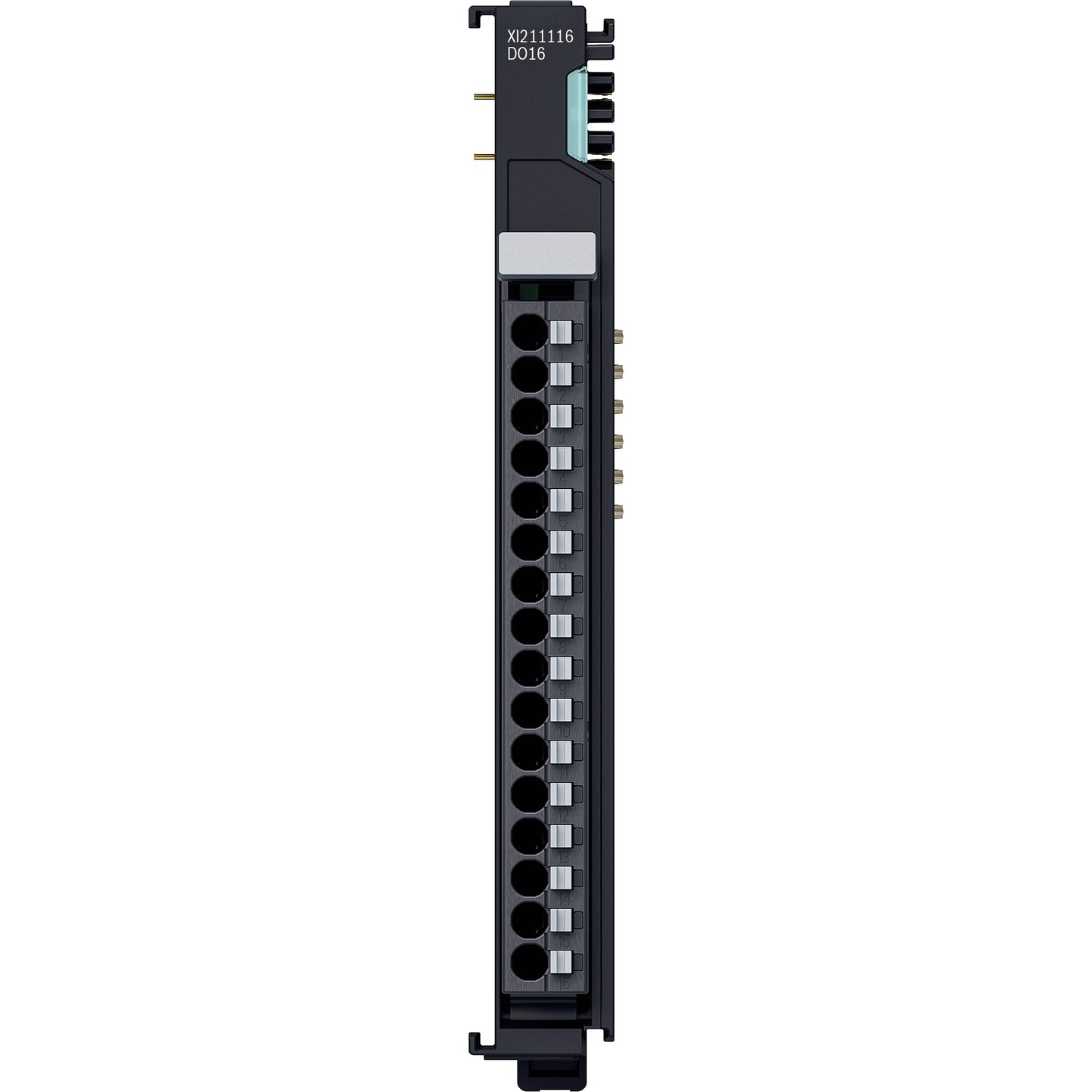

Digital output module XI211116 ctrlX I/O 16-channel (24 VDC, 0.5 A), 1-wire, PNP - R911406102

General technical data:

• Number of outputs: 16
• Connection type: push-in terminal
• Connection technology: 1-wire technology
• Output current: max. 0.5 A per channel
• Total current of the channels: max. 4 A
• Rated load: Ohmic, maximum 12 W (48 Ω; at rated voltage)
• Minimum load: 10 kΩ
• Rise time (TRise): No load: On digital input 8.3 µs, 8.5 µs at 240 Ω, 100 mA, Resistive nominal load: 10 µs at 48 Ω, 500 mA
• Fall time (TFALL): No load: On digital input 1.4 ms, 50 µs at 240 Ω, 100 mA, Resistive nominal load: 11 µs at 48 Ω, 500 mA
• Inductive shutdown energy: max. 150 mJ per channel
• Behavior in case of overload: Channel-granular shutdown with automatic restart
• Regenerative protection: Not regenerative, external precautions necessary
• Nominal voltage (UL/UP): DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
• Current consumption UL: 35 mA
• Current consumption UP: 30 mA + load
• Maximum power consumption of the module: 2.25 W
• Bit width in the process image: 2 bytes (16 bits)
• Configuration: No address or configuration setting required
• Dimensions: 12 mm × 105 mm × 99 mm (width × height × depth)
• Weight: 100 g (module including connector)
• Potential isolation: 1211 V DC UP to UL, 707 V DC UP/UL to FE (not evaluated by UL)
• EMC immunity: According to EN 61000-6-2 and EN 61000-6-4
• Installation position: Vertical, on a horizontal mounting rail
• Marking, approvals: CE, UKCA, UL (⮫ File No. E210730)
