ctrlX COREplus X3

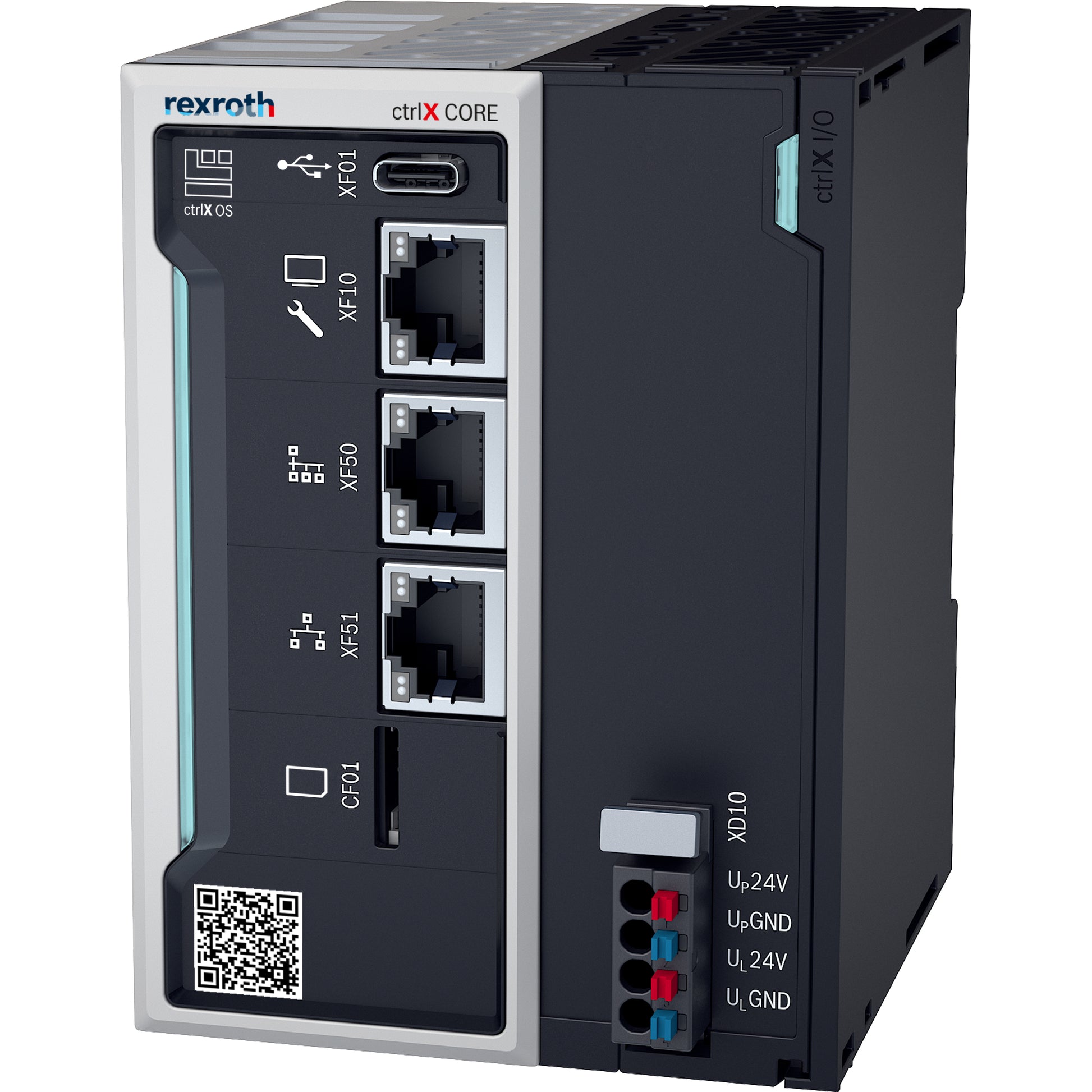

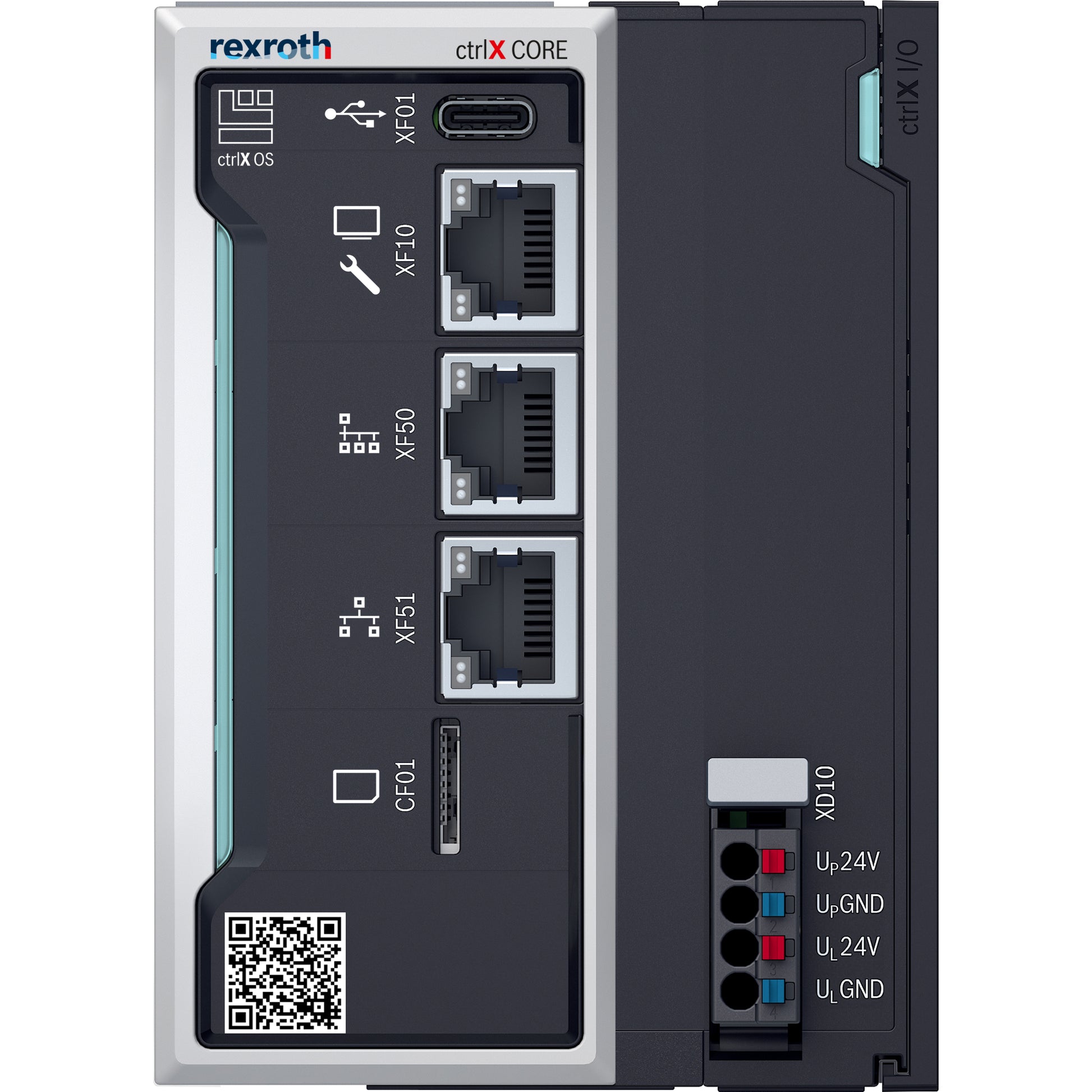

The industrially suitable and long-term available control platform ctrlX CORE has a wide range of applications and can be used, for example, in PLC applications in the general mechanical engineering market, via motion applications for simple handling tasks, as well as a purely open and industrially suitable control platform for customer-specific expertise.
With numerous features at all levels – from design and performance to software and networking – Bosch Rexroth offers far more than just a high-performance controller. ctrlX CORE is the integrated, flexible, and open control platform that equips every factory for the future.
ctrlX CORE consistently relies on EtherCAT as its standard automation bus and integrates seamlessly into the standardized ecosystem with end-to-end engineering. At the same time, the platform supports all common communication standards for connecting to the IT level. The Linux-based operating system is open to the integration of all ctrlX CORE and ctrlX WORKS engineering applications, as well as those of other partners and customer-specific applications. The integrated ctrlX Data Layer manages communication between the applications in both real-time and non-real-time.
The ctrlX Device Portal allows for centralized management of controllers and remote maintenance and updates. Certified according to IEC 62443, ctrlX CORE securely connects the machine to the IT infrastructure.
It will be shipped with a current LTS version!
Technical data
Technical data
General technical data:

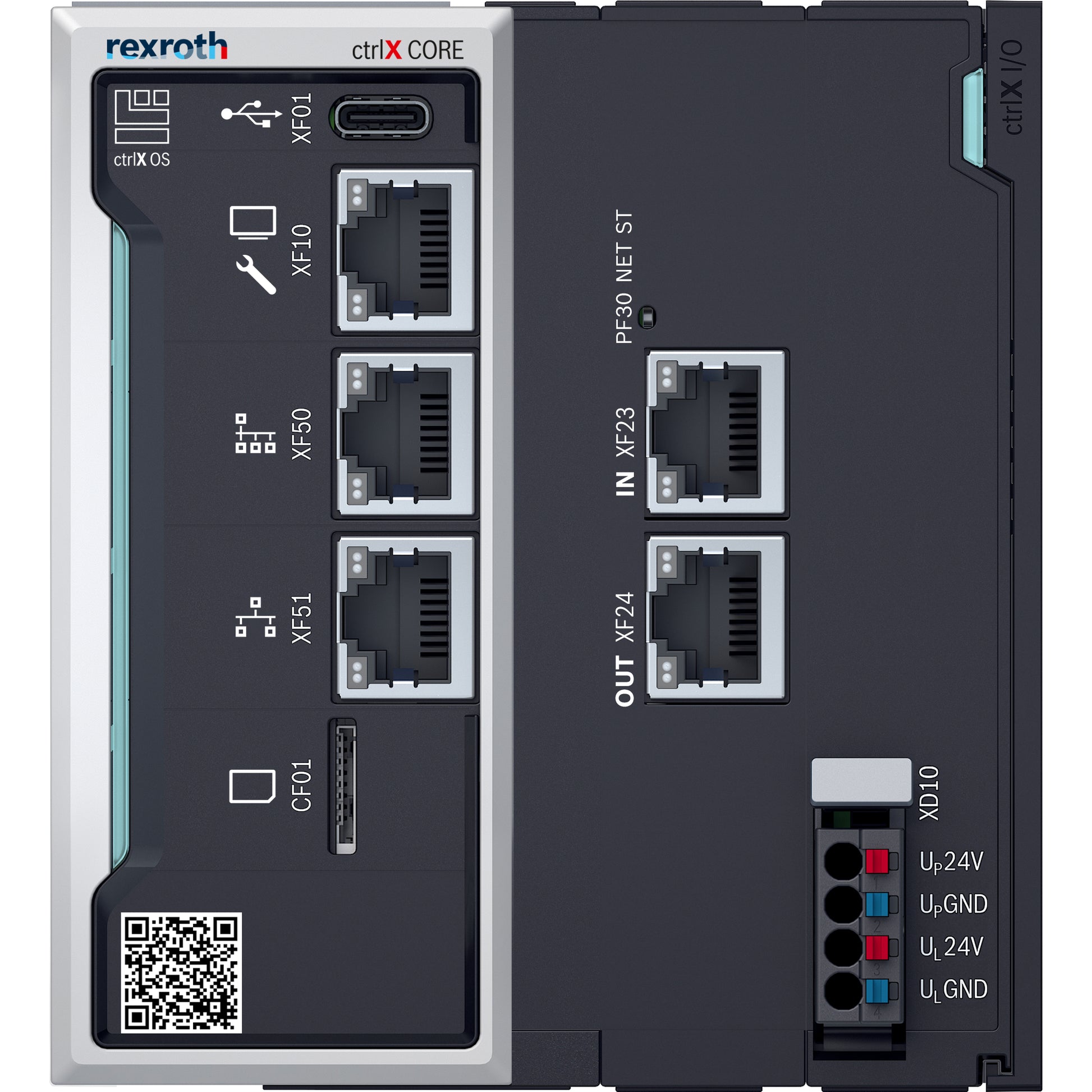

- Processor: Zync Ultrascale+, 64-bit, 4 × ARM A53
- RAM: 2 GB DRAM
- Internal physical storage (eMMC): 4 GB
- Internal non-volatile memory (NVRAM): 1 kB
- Communication interfaces RJ-45: 3 × Ethernet ports (10 Mbit, 100 Mbit, 1 Gbit)
- USB: 1 × USB host, TYPE C (USB2.0), maximum cable length 3 m
- SD card slot for SD card
- Battery: CR1025
- Weight: 469 g + expansion options
Electrical characteristics:
- Rated voltage at UL: DC 24 V SELV/PELV
- Maximum permissible voltage range of the supply voltage UL and UP: DC 19.2 V to DC 30 V (including all tolerances, including ripple)

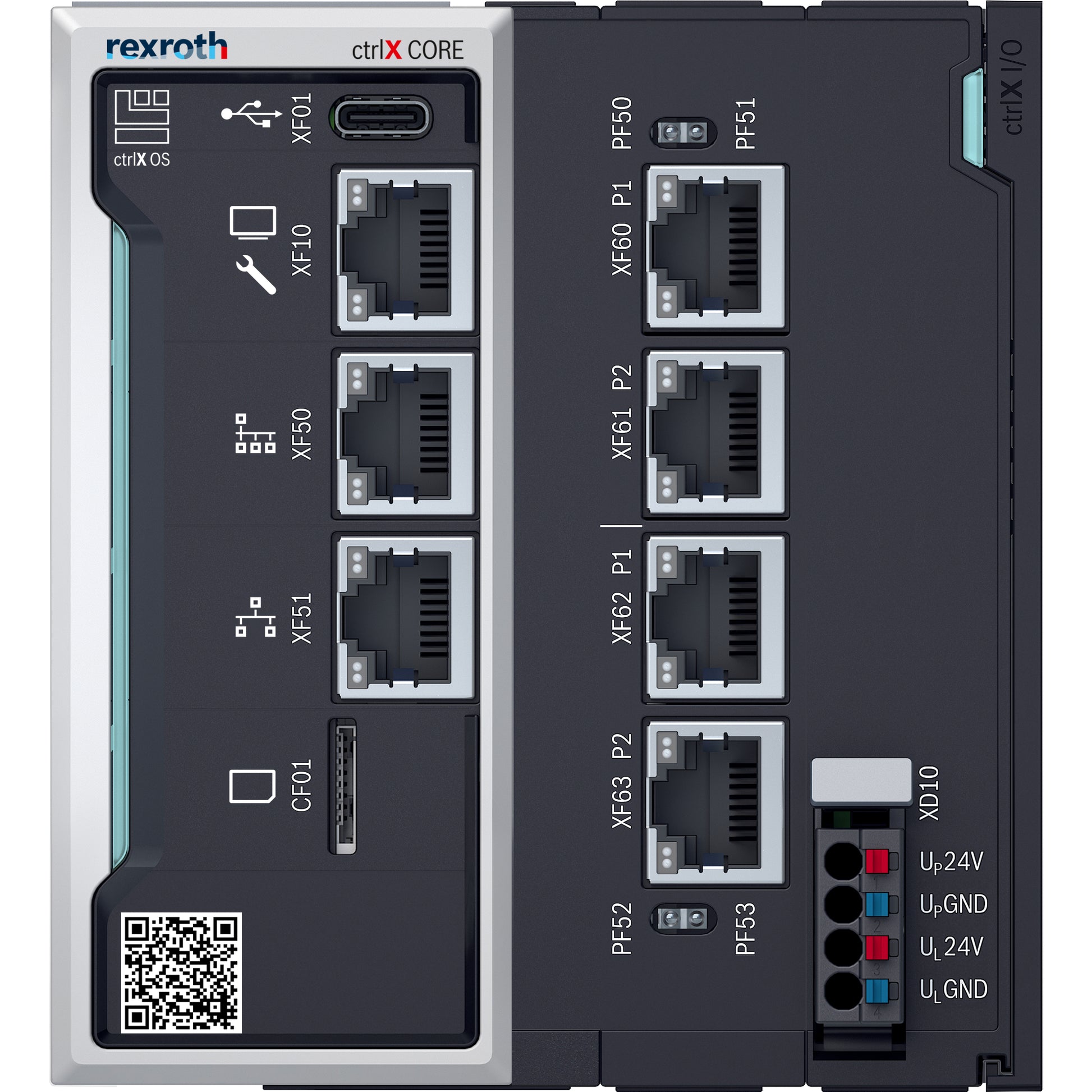

- Current consumption of the controller from UL at nominal voltage 24 V (without I/O modules): COREplus X3: 375 mA, COREplus X3 with Multi-Ethernet Slave, 2 × RJ45: 420 mA, COREplus X3 with Multi-Ethernet Master/Slave, 4 × RJ45: 510 mA, COREplus X3 with SSD: 500 mA, COREplus X3 with KI: 900 mA. With I/O modules at UL = 24 V, add a maximum of 3 A.
- Power consumption of the controller from UL at nominal voltage 24 V (without I/O modules): COREplus X3: 9 W, COREplus X3 with Multi Ethernet Slave, 2 × RJ45: 10.1 W, COREplus X3 with Multi-Ethernet Master/Slave, 4 × RJ45: 12.3 W, COREplus X3 with SSD: 12 W, COREplus X3 with AI: 21.2 W. With I/O modules at UL = 24 V, add a maximum of 72 W.
- Current consumption UP: Typ. 5 mA (without I/O modules), max. 8 A, at UP= 24 V
- Power consumption UP: Typ. 0.12 W (without I/O modules), max. 192 W, at UP= 24 V
- Reverse polarity protection for supply voltages UL and UP: Present
- UL protection: Internally with 10 A fuse
- Protection UP: No internal protection. Overload protection via an external fuse must be provided by the operator. An overcurrent protection device with a maximum rating of 10 A must be installed, e.g., a main circuit breaker according to UL489* (B, C, D, K, or Z characteristic) or a Class CC or Class J fuse according to UL248*. Overcurrent protection devices marked with "*" should be used in installations that comply with UL standards.
- Surge protection UL and UP: Present; fuses can trip in case of overvoltage.
- Transient protection UL and UP: Available, suppressor diodes, pulse load up to 1500 W
- Voltage dips at power supply interfaces: PS1 < 1 ms, evaluation criterion A
- Potential isolation 24 V supply (UL/UL GND) to functional earth, 24 V supply (UP/UP GND) to functional earth: DC 707 V (not evaluated by UL)
- 24 V supply voltage (UL/ULGND and UP/UPGND) to XF10, XF50, XF51 and XF23, XF24, XF60, XF61, XF62, XF53: DC 1200 V (not evaluated by UL)
- UL/ULGND to UP/UPGND: DC 1200 V (not evaluated by UL)
