Bosch Rexroth

ctrlX AUTOMATION Basic Set - R911427228

ctrlX AUTOMATION Basic Set - R911427228

€950,00 EUR
€1.470,00 EUR €950,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Auf Lager - Lieferzeit 2-5 Werktage*

Basic Set - Next Level Automation

Looking for a reliable PLC with IT functionality for application automation?

Ready-to-use: the ctrlX AUTOMATION Basic Set contains everything you need.

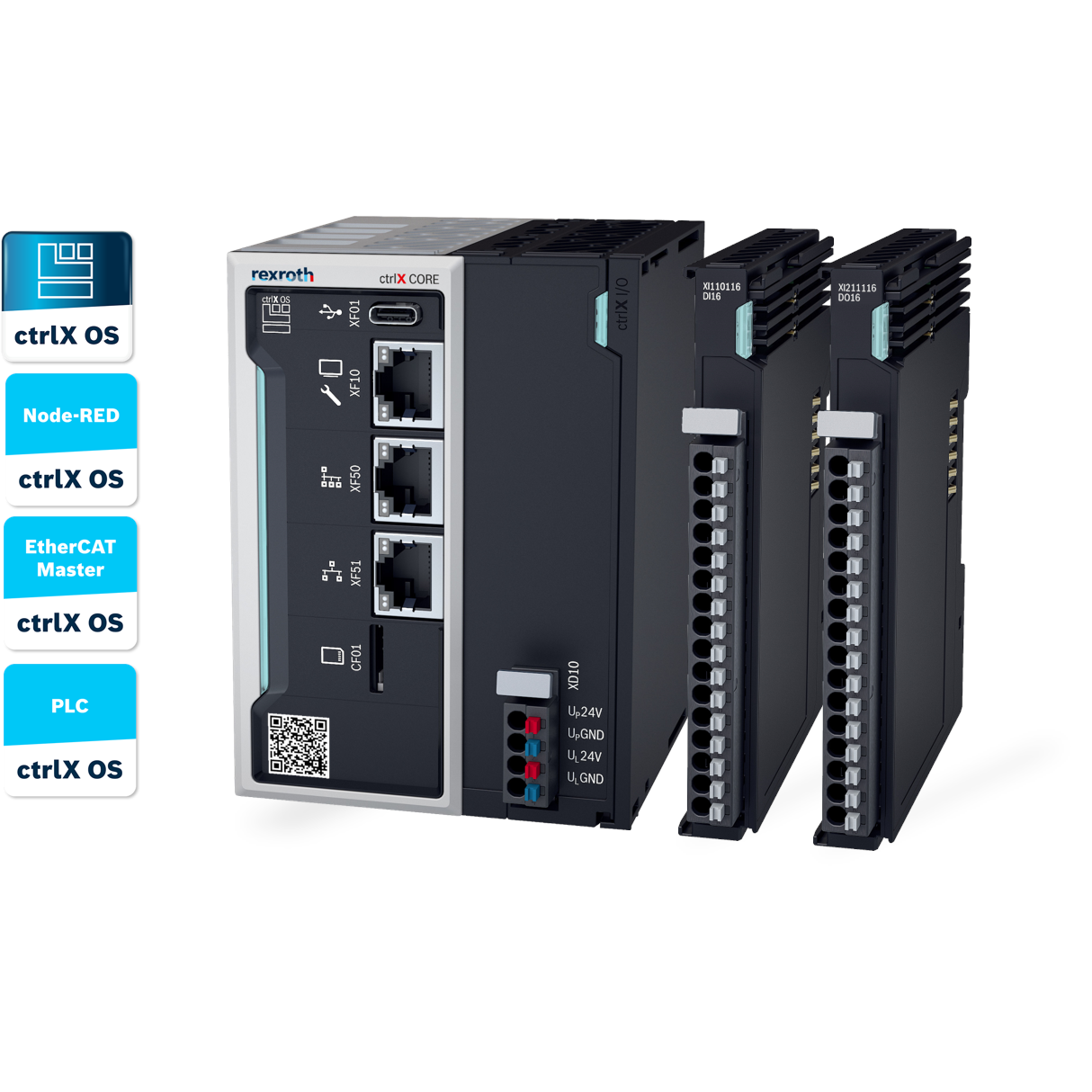

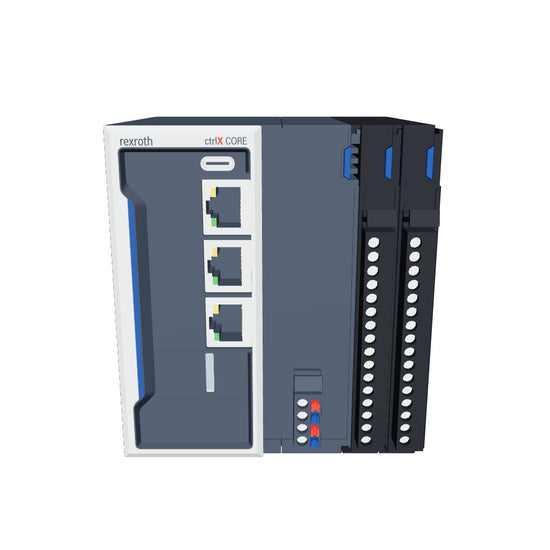

The set includes:

  • 1x ctrlX CORE PLUS X3 - R914511508
  • 1x Digital input module XI110116 ctrlX I/O 16-channel (24 VDC, 3 ms filter time), 1-wire, PNP - R911406097
  • 1x digital output module XI211116 ctrlX I/O 16-channel (24 VDC, 0.5 A), 1-wire, PNP - R911406102
  • 1x ctrlX OS License - EtherCAT Master Basic - R911400508
  • 1x ctrlX CORE License - PLC Basic (01VRS) - R911397817
  • 1x ctrlX OS License - Node-RED - R911399092

We install the licenses and can add more at any time!

We also offer 1 hour of free° support when you purchase this bundle.



About the apps:

ctrlX Node-RED

The Node-RED app is the Node-RED framework from Bosch Rexroth adapted for ctrlX AUTOMATION.

Follow the links below to find the documentation, ctrlX nodes and Node-RED example nodes on Github.

ctrlX PLC

The ctrlX PLC app offers a scalable PLC runtime system based on CODESYS V3, which is supplemented by extensive technology libraries from Bosch Rexroth.

Follow the links below to find documentation, tips on downloading ctrlX WORKS, and information about the ctrlX DataLayer.



°at our location in Saarbrücken or within a radius of 75km, otherwise digitally via MS Teams

Technical data

General technical data:

  • Processor: Zync Ultrascale+, 64-bit, 4 × ARM A53
  • Memory: 2 GB DRAM
  • Internal physical memory (eMMC): 4 GB
  • Internal nonvolatile memory (NVRAM): 128 kB
  • Communication interfaces RJ-45: 3 × Ethernet port (10 Mbit, 100 Mbit, 1 Gbit)
  • USB: 1 × USB host, TYPE C (USB2.0), maximum cable length 3 m
  • SD card slot for SD card
  • Battery: CR1025
  • Weight: 370 g

Electrical characteristics:

  • Rated voltage at UL: DC 24 V SELV/PELV
  • Maximum permissible voltage range of the supply voltage UL: DC 18 V to DC 31.2 V (including all tolerances, including ripple)
  • Current consumption of the control from UL at nominal voltage 24 V: 320 mA
  • Power consumption of the control from UL at nominal voltage 24 V: 7.68 W
  • Reverse polarity protection of supply voltage UL: Present
  • Fuse UL: Internal with eFuse, 1.5 A
  • Overvoltage protection UL: Present, in case of overvoltage the fuse can be triggered
  • Transient protection UL: Present, suppressor diodes, pulse load up to 1500 W
  • Voltage dips at power supply interfaces: PS1 < 1 ms, evaluation criterion A, not evaluated by UL
  • Potential isolation: DC 707 V
  • 24 V supply (UL/UL GND) to functional earth: not evaluated by UL
  • 24 V supply voltage (UL/UL GND) to XF10,
    XF50, XF51: DC 1200 V, not evaluated by UL

Downloads

Operating instructions:
