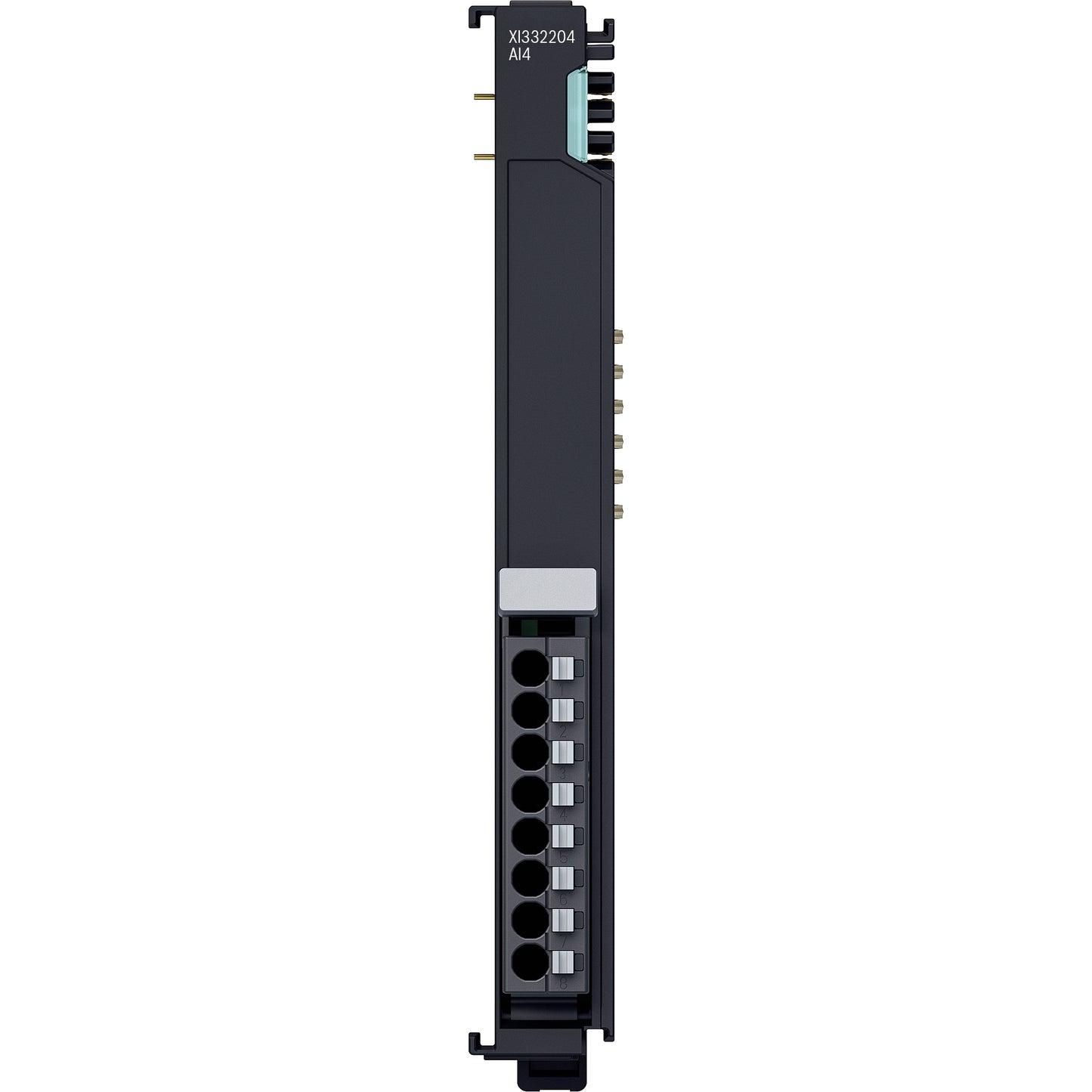

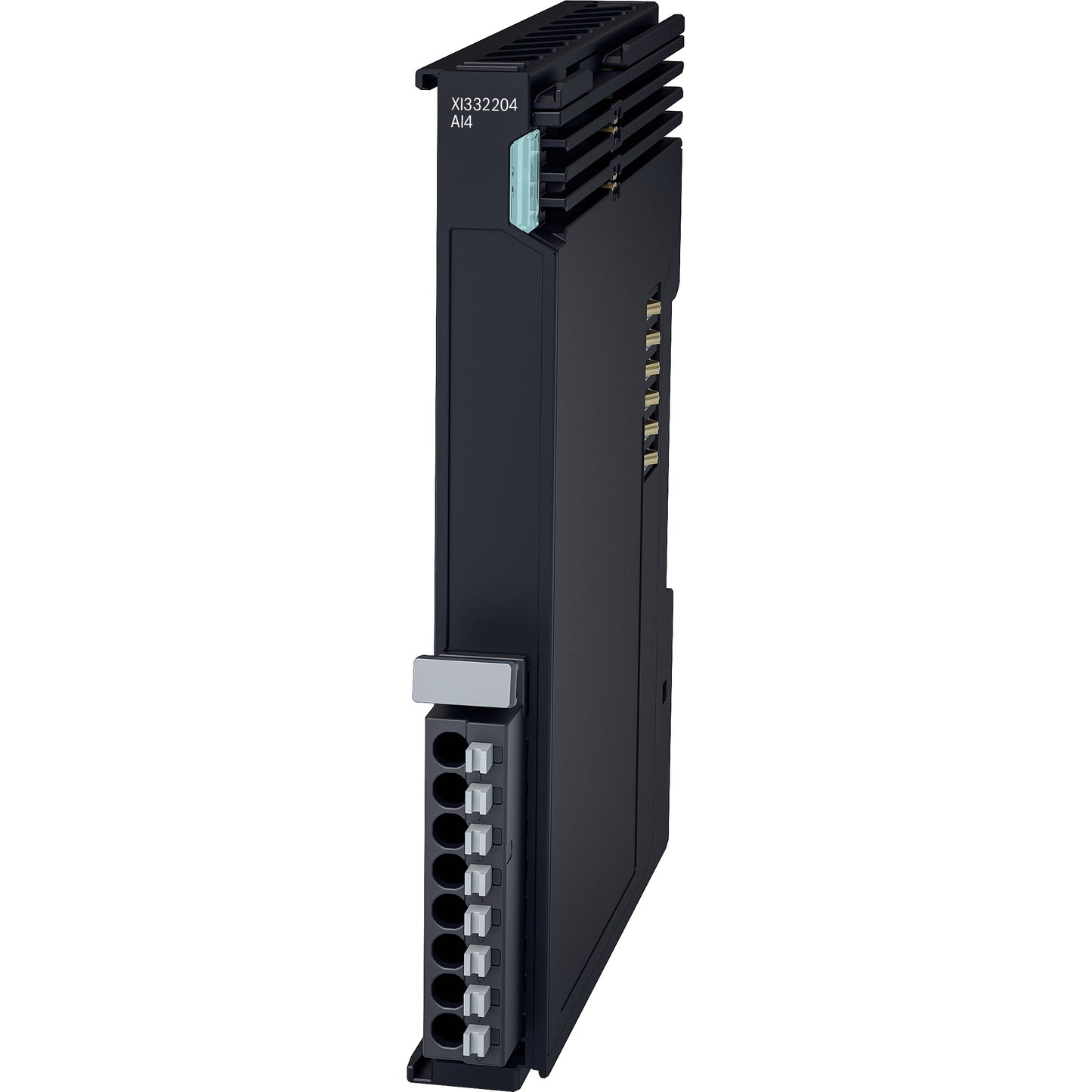

Analog input module XI332204 ctrlX I/O 4-channel (0 to 20 mA, 16 bit, differential inputs) - R911406106

The analog input terminal XI332204 processes signals in the range from 0 to 20 mA in a ctrlX I/O station. The input signal is digitized with a resolution of 16 bits and transmitted to the system level in an electrically isolated manner. The 4 input channels are differential inputs.

Error conditions are displayed on the channel LED on the removable peripheral connector and forwarded to the controller via the local bus.

The logic and peripheral power supply as well as the EtherCAT-based module communication are forwarded through the module.

The corresponding ESI files are available for integration into the higher-level system. You can find the ESI files here .

-> to the technical data <-
