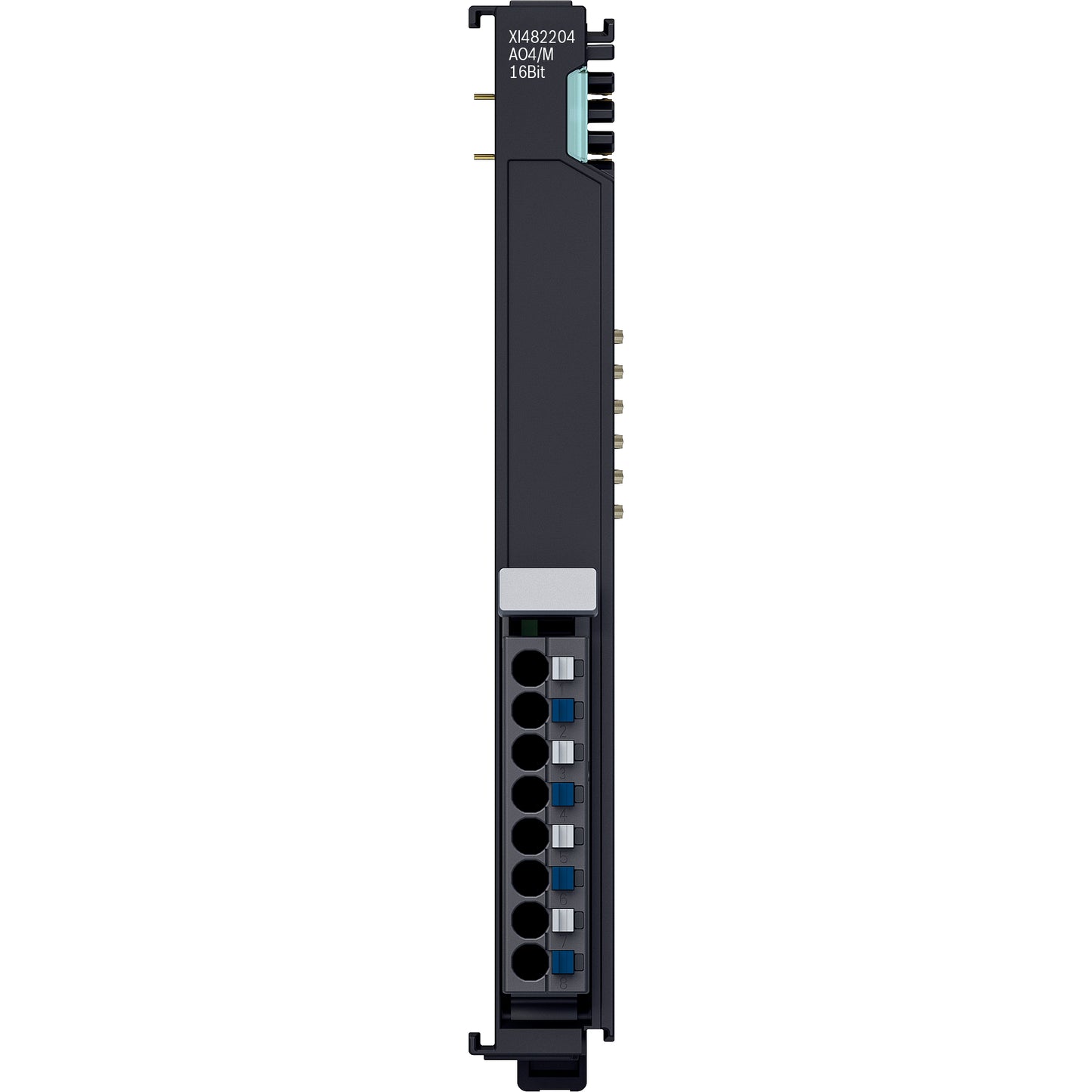

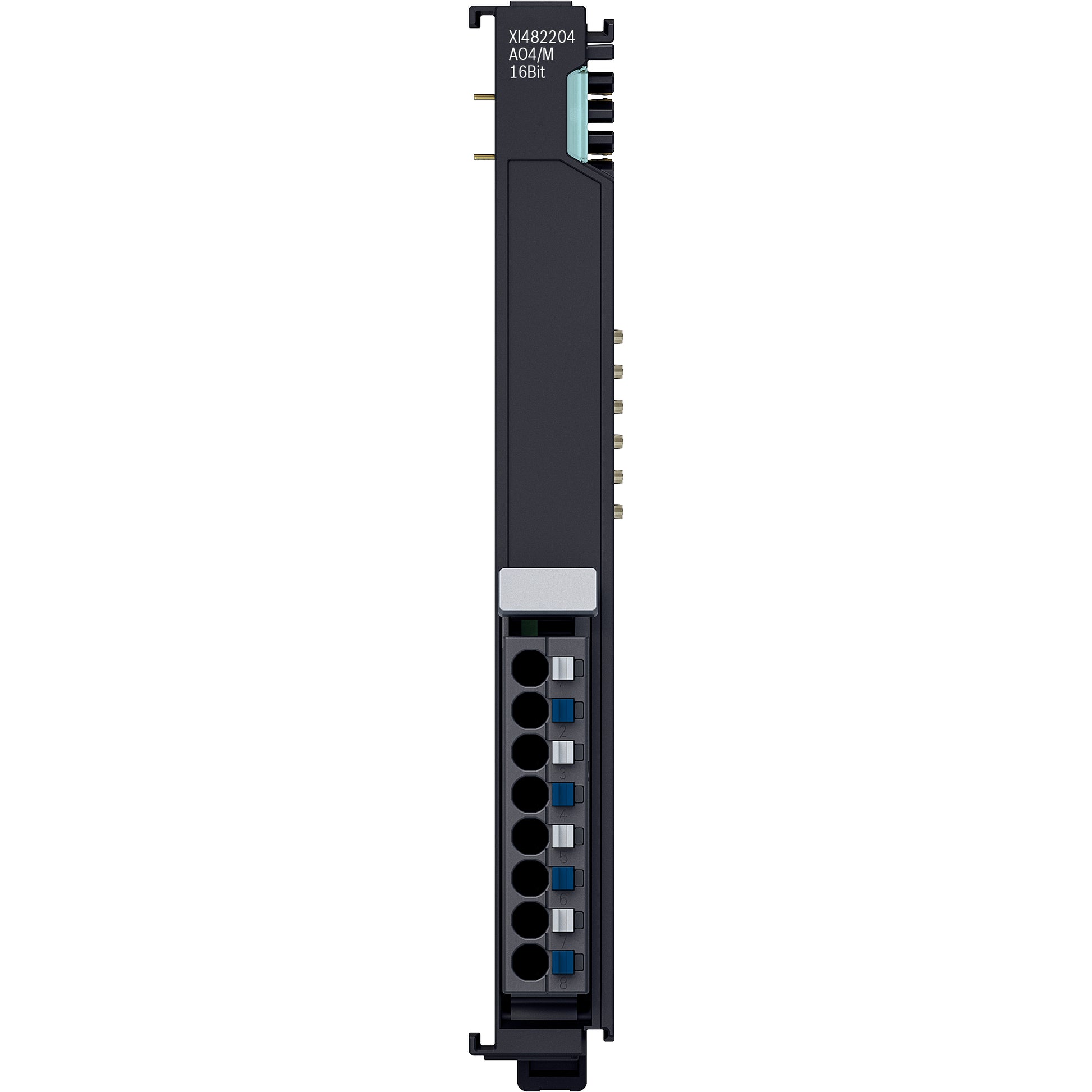

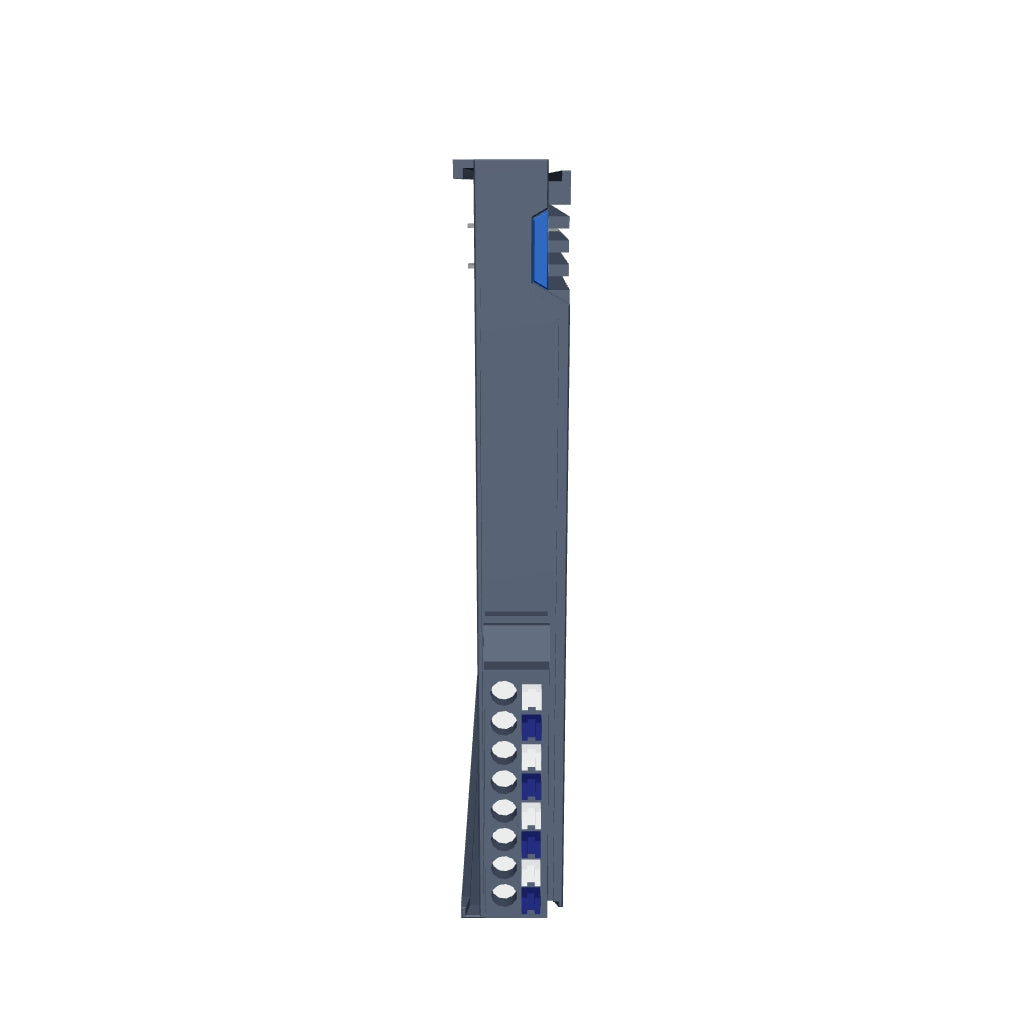

Analog output module XI482204 ctrlX I/O 4-channel (multi-range, 0...10 V, ±10 V, 0...20 mA, 4...20 mA, 16 bit, differential outputs) - R911430123

Analog output module XI482204 ctrlX I/O 4-channel (multi-range, 0...10 V, ±10 V, 0...20 mA, 4...20 mA, 16 bit, differential outputs) - R911430123

€395,00 EUR
€395,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Auf Lager. In 2–5  Tagen bei dir.
Legal guarantee rights
Legal guarantee rights Download document

The XI482204 analog output module generates output signals in the adjustable ranges of 0 V to +10 V, -10 V to +10 V, 0 to 20 mA, and 4 to 20 mA in a ctrlX I/O station. The value range can be set granularly per channel. The output signal is galvanically isolated from the system level and has a resolution of 16 bits. The four output channels share a common ground potential. The output stages are powered by the 24 V supply from UP.

The logic and peripheral power supply as well as the EtherCAT-based module communication are forwarded through the module.

The corresponding ESI files are available for integration into the higher-level system.

Technical data

General technical data

  • Number of outputs: 4
  • Connection type: Push-in terminal
  • Connection technology: 2-wire bipolar, shielded, twisted pairs
  • Output signal: 0 V to +10 V, -10 V to +10 V, 0 to 20 mA, 4 to 20 mA, adjustable per channel
  • Output load voltage mode: ≥ 5 kΩ
  • Output load current mode: ≤ 500 Ω
  • D/A resolution: 16 bits
  • Accuracy: Typ. ±0.1% of full scale (FS), max. ±0.25% of FS (depending on load, aging and temperature drift)
  • Process data update: 250 μs
  • Overload protection: Yes
  • Power supply: UP via the patch contacts
  • Nominal voltage (UL / UP): DC 24 V (19.2 V to 30 V, including tolerance and ripple) PELV/SELV (Safety Extra Low Voltage)
  • Current consumption UL: Max. 40 mA
  • Current consumption UP: Max. 80 mA
  • Maximum power consumption of the module: 2.1 W
  • Bit width of output data in the process data image: 12 bytes (adjustable per channel)
  • Bit width of input data in the process data image (including padding bits): 10 bytes (adjustable per channel)
  • Parameterization: Via ctrlX Works (startup parameters)
  • Configuration: No address or configuration setting
    necessary
  • Dimensions: 12 mm × 105 mm × 99 mm (width × height × depth)
  • Weight: 100 g (module including connector)
  • Potential isolation: 1200 V DC UP to UL, 707 V DC UP/UL to FE; tested for 60 s each (not evaluated by UL)
  • EMC resistance: According to EN 61000-6-2 and EN 61000-6-4
  • Installation position: Vertical, on a horizontal support rail
  • Markings, approvals: CE, UKCA
