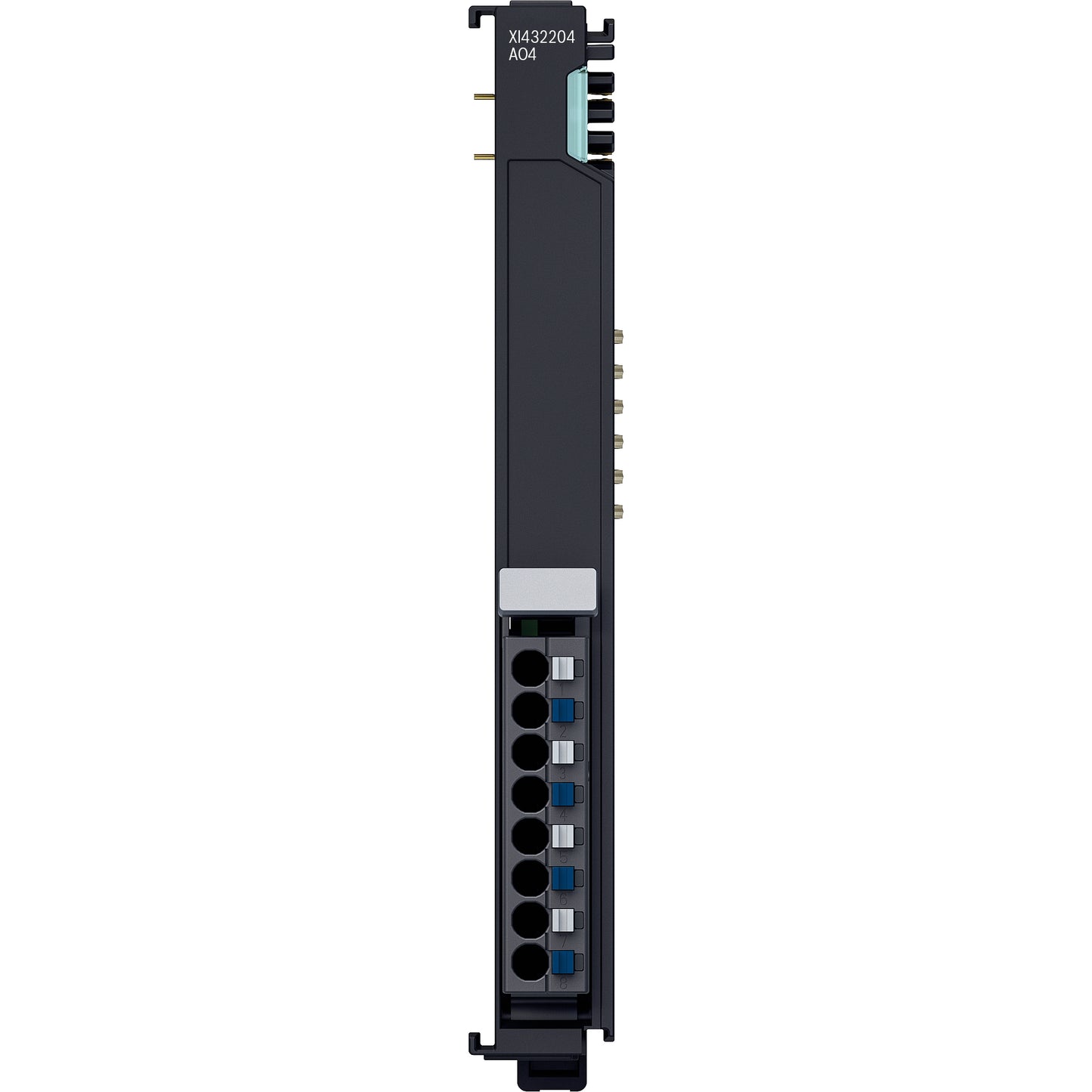

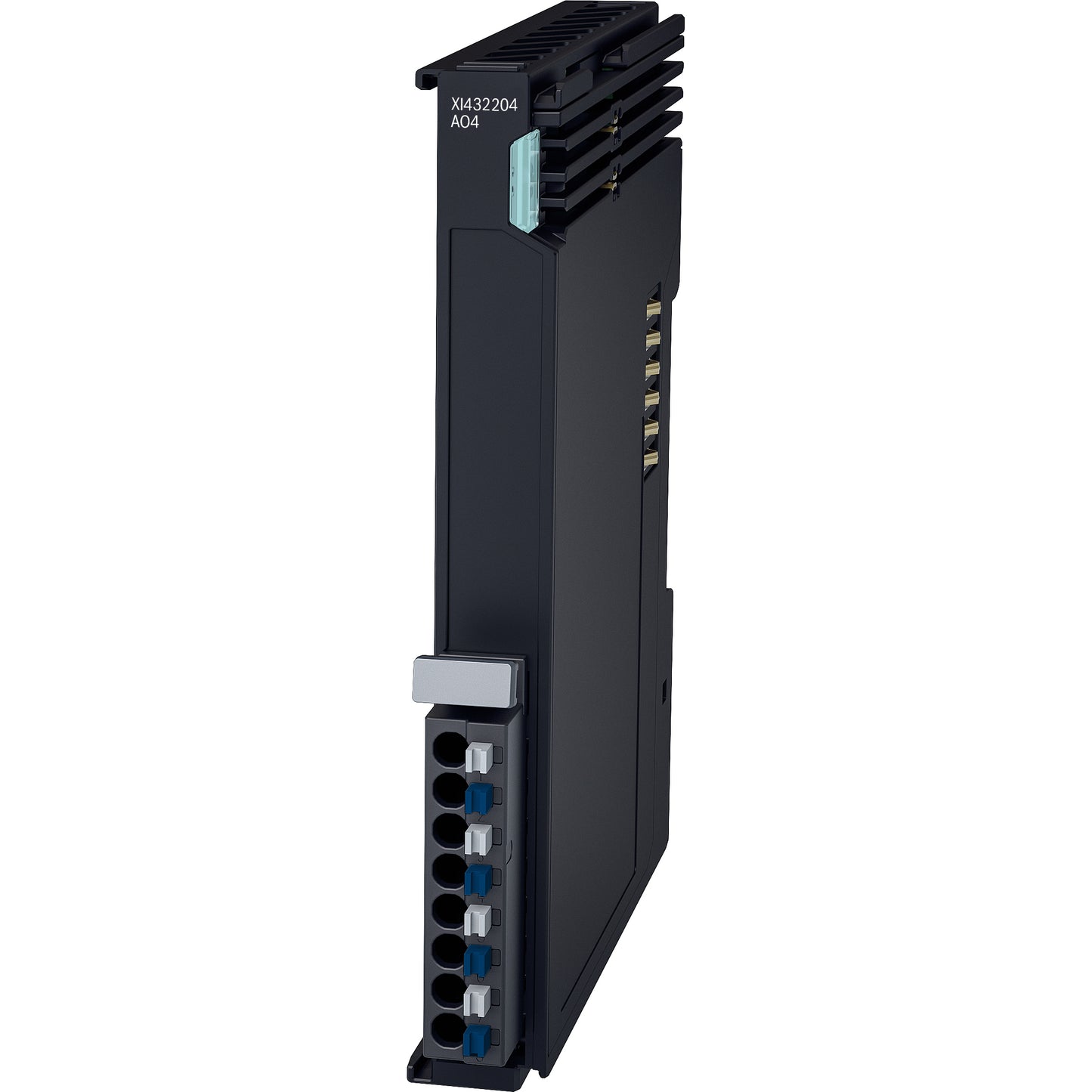

Analog output module XI432204 ctrlX I/O 4-channel (0 to 20 mA, 16 bit) - R911406115

The analog output terminal XI432204 generates output signals in the range of 0 to 20 mA in a ctrlX I/O station. The output signal is electrically isolated from the system level and output with a resolution of 16 bits. The 4 output channels have a common ground potential. The output stages are powered by the 24V supply from UP.

The logic and peripheral power supply as well as the EtherCAT-based module communication are forwarded through the module.

The corresponding ESI files are available for integration into the higher-level system. You can find the ESI files here .

-> to the technical data <-
