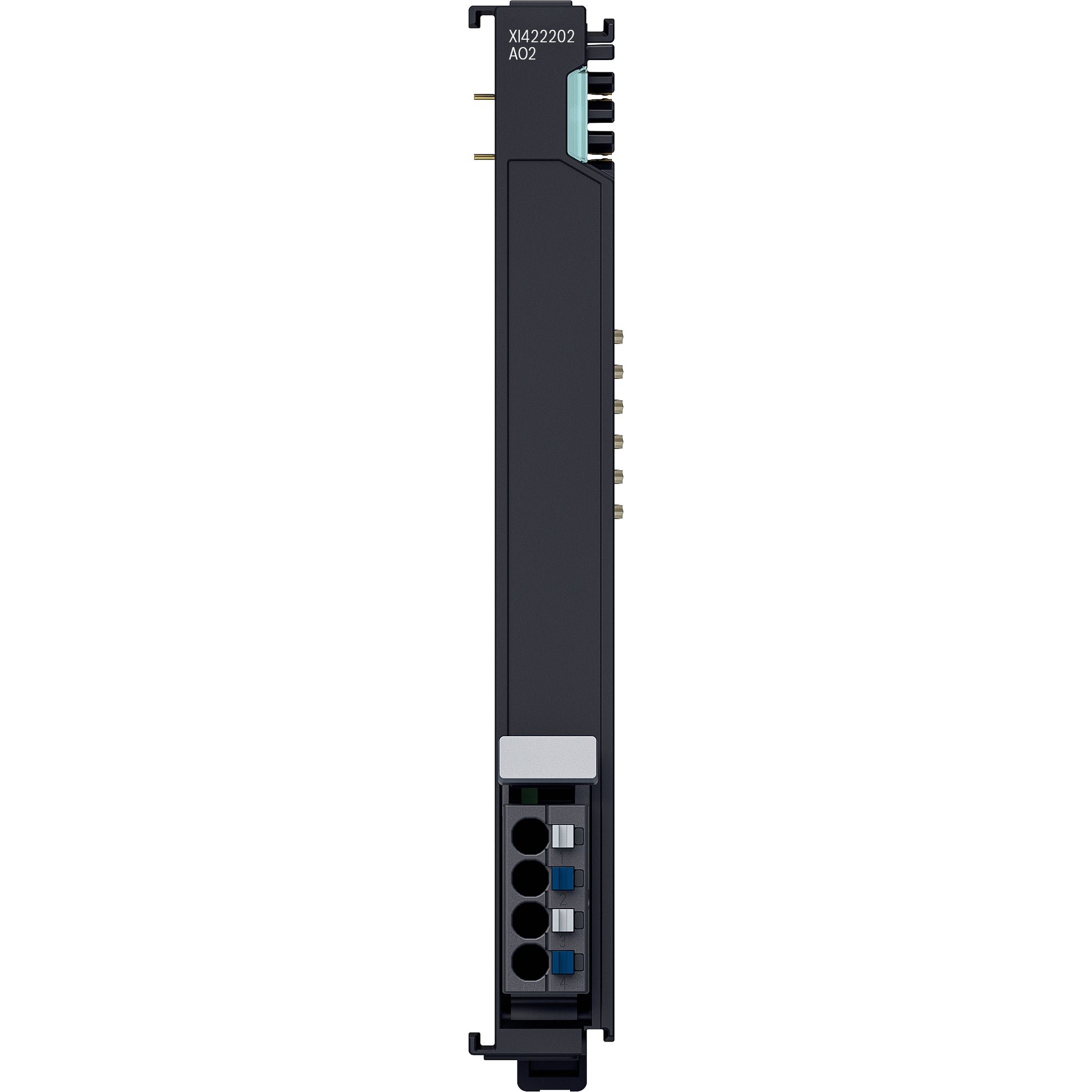

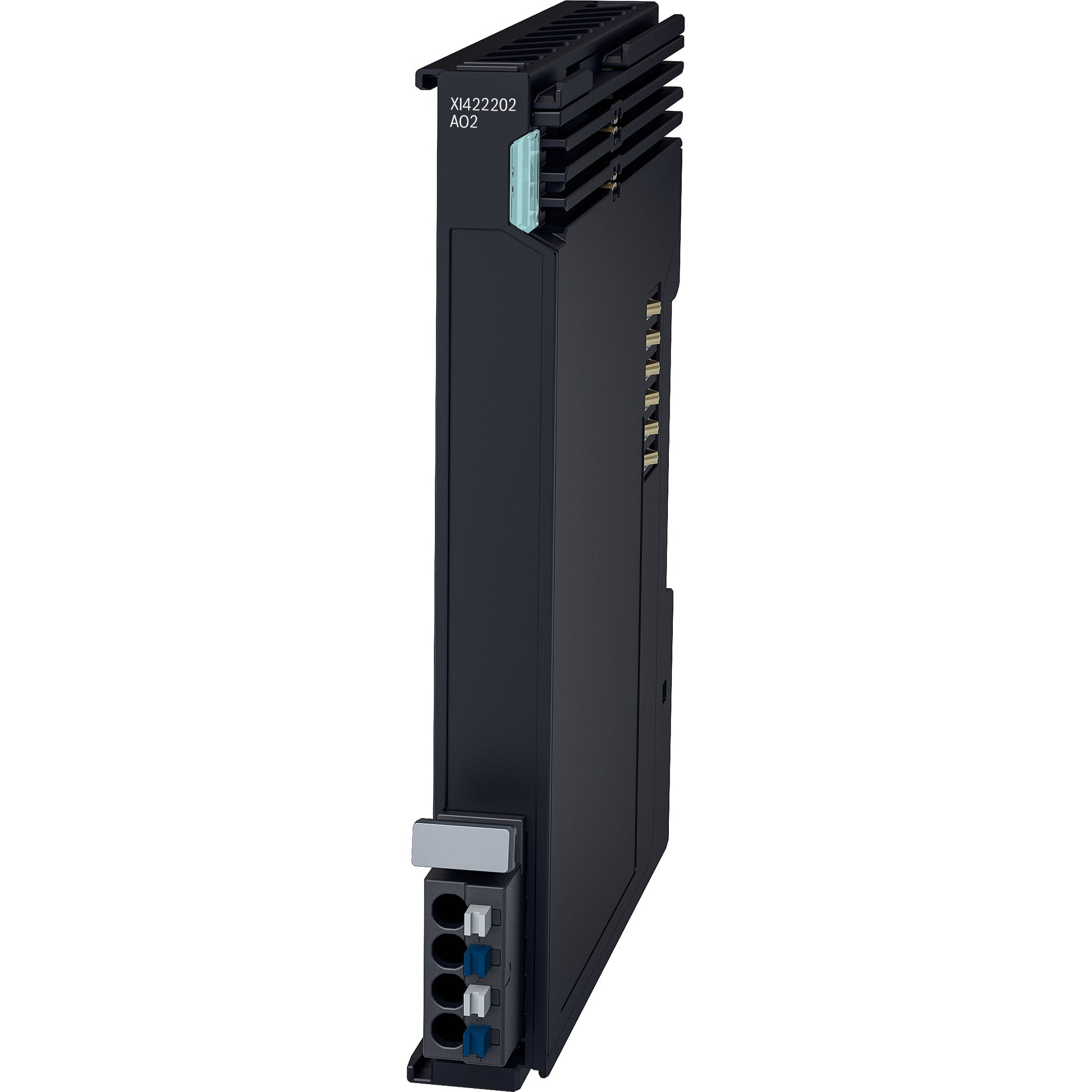

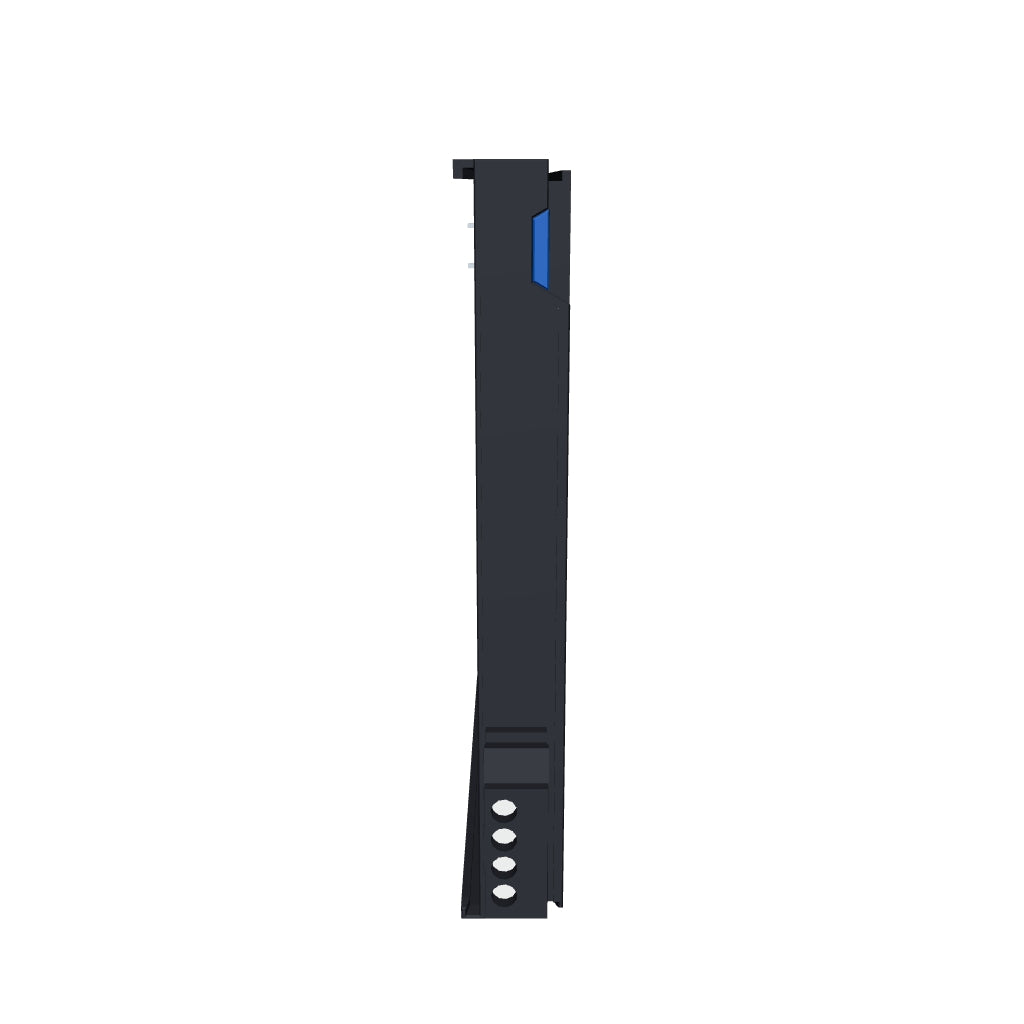

Analog output module XI422202 ctrlX I/O 2-channel (±10 V, 16 bit) - R911406113

The analog output terminal XI422202 generates output signals in the range of -10 V to +10 V in a ctrlX I/O station. The output signal is electrically isolated from the system level and output with a resolution of 16 bits. The 2 output channels have a common ground potential. The output stages are powered by the 24 V supply from UP.

The logic and peripheral power supply as well as the EtherCAT-based module communication are forwarded through the module.

The corresponding ESI files are available for integration into the higher-level system. You can find the ESI files here .

-> to the technical data <-
